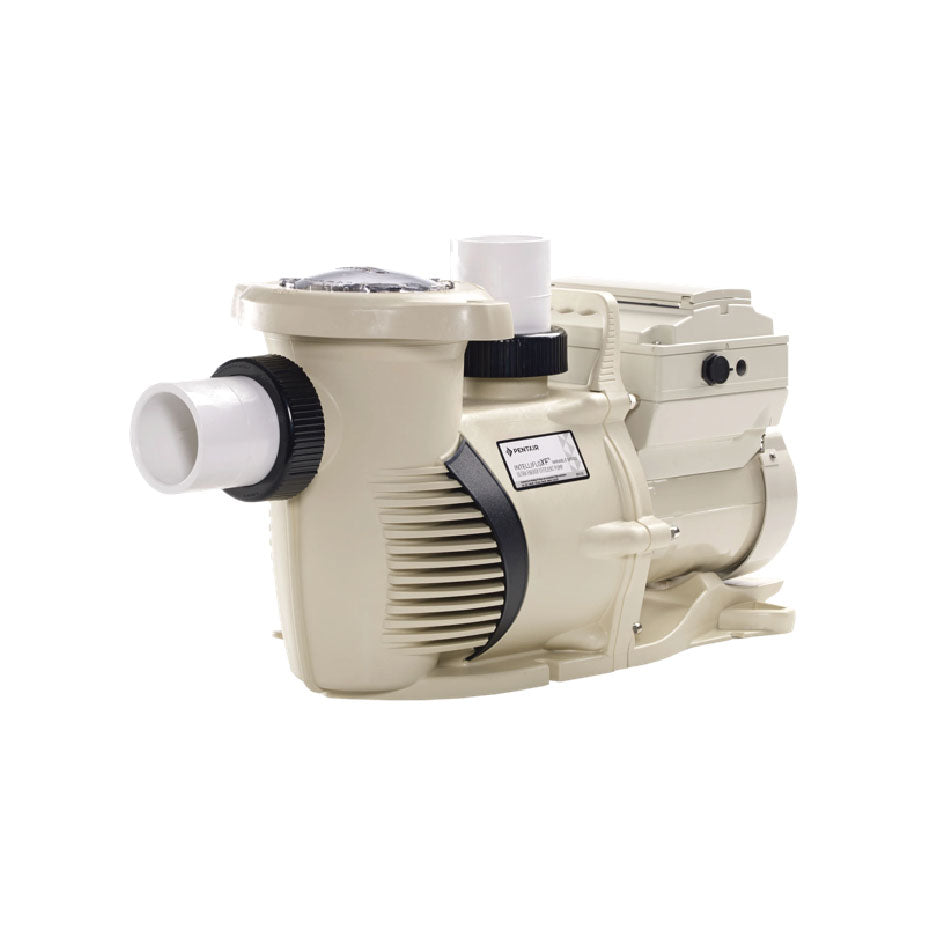

Intelliflo XF VSF Pump & Intelliflo XF VS Pump - After August 2015

17
Pentair 400015Z Impeller Assembly for WhisperFlo XF and IntelliFlo 3 HP Pumps
21
Pentair 350336Z Diffuser O-Ring for IntelliFlo and WhisperFlo XF Pumps
15
Pentair 17351-0101s Shaft Seal, .75 in. EPDM/Carbon/Ceramic, Type 6, for Sta-Rite Dyna-Jet TPE Series Spa Pumps
27
Pentair 410002 2.5 in. Union Adapter for XF Pumps
5
Pentair 410020 Union Kit Without Tap, 2.5", for WhisperFlo/IntelliFlo XF Pumps
29
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps
6
Pentair 357527Z Keypad Top Cover Assembly Kit, Almond, for IntelliFlo and IntelliFloXF Pumps
14
Pentair 400002 Seal Plate for WhisperFloXF and IntelliFloXF Pumps
24
Pentair 35505-1440 Lid/Locking Ring O-Ring for Max-E-Pro, Dyna-Pro, IntelliPro VS 3050, IntelliFloXF and WhisperFloXF Pumps
1
Pentair 350305S Motor, 3.2 kW 10 Pole for IntelliFlo XF VSF/VS, VSF/VS/VST, VS+SVRS and i1 + i2 Pumps
30
Pentair 357161Z 1/4 in. NPT Drain Plug, Black, for WhisperFlo, EQ, IntelliPro VS, SuperMax Pumps and Tagelus, Triton II Sand Filters
19
Pentair 400010 2-3 HP Diffuser for WhisperFlo and IntelliFlo XF, Sta-Rite Pumps

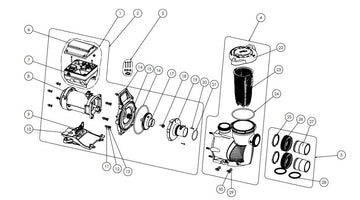

Check the parts blowup above for the most common replacement part for the Pentair Intelliflo XF VSF Pump & the Intelliflo XF VS Pump - After August 2015.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
19 400010
Pentair 400010 2-3 HP Diffuser for WhisperFlo and IntelliFlo XF, Sta-Rite Pumps $20.99
00 350122z
Pentair 350122z 50 Ft. 2-Conductor Communication Cable for IntelliFlo and IntelliPro VS+SVRS Pumps $163.00
30 357161Z
Pentair 357161Z 1/4 in. NPT Drain Plug, Black, for WhisperFlo, EQ, IntelliPro VS, SuperMax Pumps and Tagelus, Triton II Sand Filters $6.99

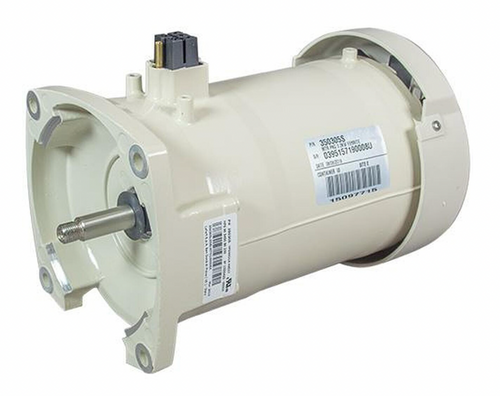

1 350305S
Pentair 350305S Motor, 3.2 kW 10 Pole for IntelliFlo XF VSF/VS, VSF/VS/VST, VS+SVRS and i1 + i2 Pumps $740.00
24 35505-1440
Pentair 35505-1440 Lid/Locking Ring O-Ring for Max-E-Pro, Dyna-Pro, IntelliPro VS 3050, IntelliFloXF and WhisperFloXF Pumps $26.02
30 071131Z
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps $8.99
14 400002
Pentair 400002 Seal Plate for WhisperFloXF and IntelliFloXF Pumps $286.55
6 357527Z
Pentair 357527Z Keypad Top Cover Assembly Kit, Almond, for IntelliFlo and IntelliFloXF Pumps $350.00
29 192115Z
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps $3.99
5 410020
Pentair 410020 Union Kit Without Tap, 2.5", for WhisperFlo/IntelliFlo XF Pumps $139.00
27 410002
Pentair 410002 2.5 in. Union Adapter for XF Pumps $52.11
15 17351-0101s
Pentair 17351-0101s Shaft Seal, .75 in. EPDM/Carbon/Ceramic, Type 6, for Sta-Rite Dyna-Jet TPE Series Spa Pumps $27.99
21 350336Z
Pentair 350336Z Diffuser O-Ring for IntelliFlo and WhisperFlo XF Pumps $4.99
17 400015Z
Pentair 400015Z Impeller Assembly for WhisperFlo XF and IntelliFlo 3 HP Pumps $89.00
