Superflo_VS_VST_Variable_Speed_Supermax_VS_Variable_Speed_Pump_Before_November_2020.jpg
22
Pentair 355389 Impeller Locking Screw for Challenger High Pressure and Flow, Pinnacle, SuperFlo and SuperMax Inground Pumps
21
Pentair 355334 Diffuser Screw, No. 8-32 x 1 in. Stainless Steel Hex Washer Head, for Challenger High Flow Pumps
9
Pentair 355030 Diffuser Seal for SuperMax DOE, SuperFlo and Challenger Pumps
6
Pentair 355619 Seal Plate O-Ring for DOE and SuperMax Pumps, and Sand Filters 11A, 11B
25
Pentair 350093 Union Adapter for SuperFlo and SuperMax Inground Pumps, 2-Pack
27
Pentair 270141 Black Union Nut for SuperMax High Pressure Pumps and Slide Valves
23
Pentair 354545S 5/8 in. Mechanical Shaft Seal for Challenger, Pinnacle, SuperFlo, SuperMax, OptiFlo and Dynamo Pumps
16
Pentair 350091 Lid for Superflo, Superflo VS, Sta-Rite Supermax and Supermax Pumps
17
Pentair 350090 Lid Locking Ring, Almond, Cam and Ramp Clamp for SuperFlo, SuperFlo VS and SuperMax Pumps
12
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps
7
Pentair 355074 Impeller for Challenger 1 HP and SuperFlo 1.5 Pumps
15
Pentair 355667Z Large Strainer Basket for SuperFlo VS/VST and SuperMax VS Variable Speed Pumps
26
Pentair 6020018 Union Adapter O-Ring for SuperFlo and SuperMax Pumps - Discontinued - Limited Qty
5
Pentair 356012 Seal Plate, Almond, for SuperFlo and SuperMax VS Pumps (Mfg. Before 06/17/19)
14
Pentair 357255Z Lid O-Ring, 2-357 Buna-N, for SuperFlo VS/VST, SuperMax VS and OptiFlo Pumps
11
Pentair 357161Z 1/4 in. NPT Drain Plug, Black, for WhisperFlo, EQ, IntelliPro VS, SuperMax Pumps and Tagelus, Triton II Sand Filters

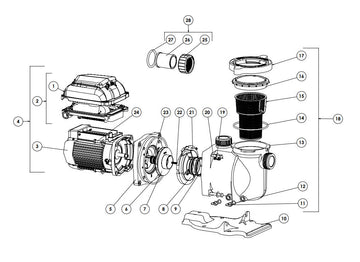

Check the parts blowup above for the most common replacement part for the Superflo VS/VST Variable Speed & Supermax VS Variable Speed Pump Before November 2020.  The parts list below shows the most common part replacement along with any substitutions that could be used.

Superflo VS/VST Variable Speed & Supermax VS Variable Speed Pump Before November 2020

Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
11 357161Z
Pentair 357161Z 1/4 in. NPT Drain Plug, Black, for WhisperFlo, EQ, IntelliPro VS, SuperMax Pumps and Tagelus, Triton II Sand Filters $6.99
14 357255Z
Pentair 357255Z Lid O-Ring, 2-357 Buna-N, for SuperFlo VS/VST, SuperMax VS and OptiFlo Pumps $7.99
11 071131Z
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps $8.99
5 356012
Pentair 356012 Seal Plate, Almond, for SuperFlo and SuperMax VS Pumps (Mfg. Before 06/17/19) $93.63
26 6020018
Pentair 6020018 Union Adapter O-Ring for SuperFlo and SuperMax Pumps - Discontinued - Limited Qty $3.99
15 355667Z
Pentair 355667Z Large Strainer Basket for SuperFlo VS/VST and SuperMax VS Variable Speed Pumps $20.00
7 355074
Pentair 355074 Impeller for Challenger 1 HP and SuperFlo 1.5 Pumps $72.84
12 192115Z
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps $3.99
17 350090
Pentair 350090 Lid Locking Ring, Almond, Cam and Ramp Clamp for SuperFlo, SuperFlo VS and SuperMax Pumps $50.00
16 350091
Pentair 350091 Lid for Superflo, Superflo VS, Sta-Rite Supermax and Supermax Pumps $39.61
23 354545S
Pentair 354545S 5/8 in. Mechanical Shaft Seal for Challenger, Pinnacle, SuperFlo, SuperMax, OptiFlo and Dynamo Pumps $25.00
23 17351-0101s
Pentair 17351-0101s Shaft Seal, .75 in. EPDM/Carbon/Ceramic, Type 6, for Sta-Rite Dyna-Jet TPE Series Spa Pumps $27.99
27 270141
Pentair 270141 Black Union Nut for SuperMax High Pressure Pumps and Slide Valves $20.00
25 350093
Pentair 350093 Union Adapter for SuperFlo and SuperMax Inground Pumps, 2-Pack $18.00
6 355619
Pentair 355619 Seal Plate O-Ring for DOE and SuperMax Pumps, and Sand Filters 11A, 11B $12.99 1
9 355030
Pentair 355030 Diffuser Seal for SuperMax DOE, SuperFlo and Challenger Pumps $20.99 1
14 357255
O-Ring 2-357 $10.00 1
21 355334
Pentair 355334 Diffuser Screw, No. 8-32 x 1 in. Stainless Steel Hex Washer Head, for Challenger High Flow Pumps $6.99 1
9 355331Z
Pentair 355331Z Diffuser O-Ring 2-233 for Challenger High Flow 5 HP, Pressure and WaterFall Specialty Pumps $4.99 1
22 355389
Pentair 355389 Impeller Locking Screw for Challenger High Pressure and Flow, Pinnacle, SuperFlo and SuperMax Inground Pumps $7.99 1
