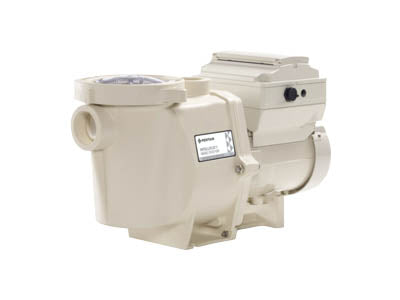

Intelliflo i1 + i2 Variable Speed Pump - After April 2016

Intelliflo_i1_i2_Variable_Speed_Pump_After_April_2016_e1bf7b5b-8210-4b56-bb8d-d0fc80305b8d.jpg
0
Pentair 350122z 50 Ft. 2-Conductor Communication Cable for IntelliFlo and IntelliPro VS+SVRS Pumps
1
Pentair 357199 Clamp, Cam and Ramp for WhisperFlo, IntelliFlo and IntelliPro Pumps
2
Pentair 357151 See-Through Lid for WhisperFlo and IntelliFlo Inground Pumps
3
Pentair 350013Z Lid O-Ring 2-436 Buna for IntelliFlo, VS+SVRS, WhisperFlo and Challenger Pumps
4
Pentair 070387Z Strainer Basket for WhisperFlo, IntelliFlo, VS+SVRS and IntelliFlo VF Pumps
6
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps
7
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps
18
Pentair 350305S Motor, 3.2 kW 10 Pole for IntelliFlo XF VSF/VS, VSF/VS/VST, VS+SVRS and i1 + i2 Pumps
20
Pentair 357527Z Keypad Top Cover Assembly Kit, Almond, for IntelliFlo and IntelliFloXF Pumps
24
Pentair 074564Z Seal Plate, Almond, for IntelliFlo and WhisperFlo Pumps
25
Pentair 357100 Seal Plate Gasket for WhisperFlo and IntelliFlo Pumps
26
Pentair 071734S Mechanical Seal, Impeller to Plate, for IntelliFlo, WhisperFlo, IntelliPro and Booster Pumps
27
Pentair 073128 Impeller for WhisperFlo 1 HP Full-Rated/1.5 Up-Rated and IntelliFlo XF i1 Pumps
28
Pentair 075713 Impeller Set Screw Rubber Washer for IntelliFlo VF, WhisperFlo WFE and C-Series Pumps
31
Pentair 071660 Set Screw #4-40x1-1/8" 2 REQ
32
Pentair 355227Z Diffuser O-Ring, 3.484 in. x 0.139 in., Buna-N 70 for IntelliFlo, WhisperFlo and IntelliPro Pumps

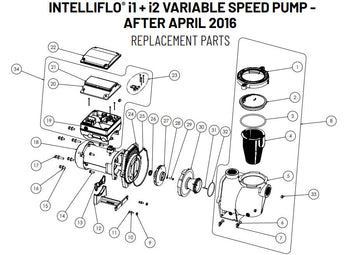

Check the parts blowup above for the most common replacement part for the Intelliflo i1 + i2 Variable Speed Pump - After April 2016.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
Not Shown 350122z
Pentair 350122z 50 Ft. 2-Conductor Communication Cable for IntelliFlo and IntelliPro VS+SVRS Pumps $163.00
1 357199
Pentair 357199 Clamp, Cam and Ramp for WhisperFlo, IntelliFlo and IntelliPro Pumps $60.67
2 357151
Pentair 357151 See-Through Lid for WhisperFlo and IntelliFlo Inground Pumps $30.00
3 350013Z
Pentair 350013Z Lid O-Ring 2-436 Buna for IntelliFlo, VS+SVRS, WhisperFlo and Challenger Pumps $5.99
4 070387Z
Pentair 070387Z Strainer Basket for WhisperFlo, IntelliFlo, VS+SVRS and IntelliFlo VF Pumps $18.99
6 192115Z
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps $3.99
7 071131Z
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps $8.99
18 350305S
Pentair 350305S Motor, 3.2 kW 10 Pole for IntelliFlo XF VSF/VS, VSF/VS/VST, VS+SVRS and i1 + i2 Pumps $740.00
20 357527Z
Pentair 357527Z Keypad Top Cover Assembly Kit, Almond, for IntelliFlo and IntelliFloXF Pumps $350.00
24 074564Z
Pentair 074564Z Seal Plate, Almond, for IntelliFlo and WhisperFlo Pumps $103.00
25 357100
Pentair 357100 Seal Plate Gasket for WhisperFlo and IntelliFlo Pumps $9.99
26 071734S
Pentair 071734S Mechanical Seal, Impeller to Plate, for IntelliFlo, WhisperFlo, IntelliPro and Booster Pumps $32.99
27 073128
Pentair 073128 Impeller for WhisperFlo 1 HP Full-Rated/1.5 Up-Rated and IntelliFlo XF i1 Pumps $109.99
27 073131
Pentair 073131 Impeller for IntelliFlo VS and VF 3 HP Pumps, Made Before 10/2020 $158.00
28 075713
Pentair 075713 Impeller Set Screw Rubber Washer for IntelliFlo VF, WhisperFlo WFE and C-Series Pumps $4.00
29 071652Z
Pentair 071652Z Impeller Set Screw, 1/4-20 x 1 in. Left-Hand Thread Phillips Pan, Stainless, for IntelliFlo, IntelliPro VS+SVRS and WhisperFlo Pumps $4.99
31 071660
Pentair 071660 Set Screw #4-40x1-1/8" 2 REQ $4.31
32 355227Z
Pentair 355227Z Diffuser O-Ring, 3.484 in. x 0.139 in., Buna-N 70 for IntelliFlo, WhisperFlo and IntelliPro Pumps $4.99
