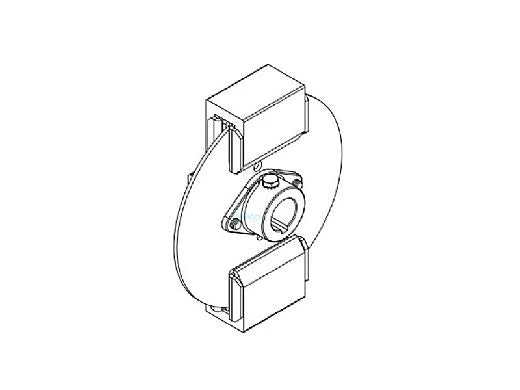

Coverstar A0017 Torque Limiter Assembly for CS3000 Models (Caliper style) (For all CS3000's after 5/13) - Category: Mechanism Hardware
A0017
Coverstar item A0017: Torque Limiter Assembly for CS3000 Models (Caliper style) (For all CS3000's after 5/13). Catalog category: Mechanism Hardware.
Part details
| Item number | A0017 |
|---|---|
| Manufacturer | Coverstar |
| Manufacturer description | Torque Limiter Assembly for CS3000 Models (Caliper style) (For all CS3000's after 5/13) |
| Catalog category | Mechanism Hardware |
| Model / system references | CS3000 |
| Number of component parts | 12 |
| Used in | 4 assemblies in the manufacturer parts catalog |
Also known as
| Manufacturer name | Coverstar |
|---|---|
| Terminology | Torque Limiter = Clutch |
Components included
This item is supplied as an assembly or kit made up of the following parts.
| Qty | Item # | Description |
|---|---|---|
| 1 | H1028 | Key Way 1/4" x 13/16" (For 1" Motor Shaft) |
| 1 | H9705 | Bolt - 1/4" - #20 x1/2" HHSS |
| 4 | M4651 | Torque limiter friction pad 1/8 inch for Caliper Style |
| 4 | M4652 | Torque Limiter Backing Plate For Caliper Style |
| 1 | M4654 | Rotor Plate for Caliper Style Torque Limiter, Eclipse & CS3000 |
| 2 | M4653 | Torque limiter spring plate for caliper style TL |
| 2 | H9721 | Bolt - HH 3/8-24 3/4 stainless steel (SS) w/nylon patch |
| 2 | H0289 | Bolt HHMS 5/16-18 x 1/2 stainless steel (SS) for Caliper Style Torque Limiter Eclipse & CS3000 |
| 8 | H9704 | Rivet countersunk 1/8 dia. X .337 long Stainless Steel |
| 1 | M0027 | Torque Limiter Caliper Style Drive Shaft Hub stainless steel (SS) (CS3000) |
| 1 | M4556 | Hub Pilot Bushing for Caliper Style Torque Limiter Eclipse & CS3000 |
| 1 | M4750 | Torque Limiter Caliper for Eclipse & CS3000 |
Used in these assemblies
This part is a component of the following assemblies and kits.
| Assembly # | Description | Qty used |
|---|---|---|
| A0024 | Mechanism CS3000 Recessed Track (RT)/Under Guide (UG) Left (New 2013) Complete Motor End (ME) w/o motor | 1 |
| A0012 | Mechanism CS3000 Recessed Track (RT)/Under Guide (UG) Right (New 2013) Complete Motor End (ME) w/o motor | 1 |
| A0028 | Mechanism CS3000 Deck Right (New 2013) | 1 |
| A0029 | Mechanism CS3000 Deck Left (New 2013) (no motor) | 1 |
Not sure this is the right part? Contact Premier Pool & Spa with your cover model and we will confirm fit before you order.
