Raypak 006713F Header O-Ring Gasket, 2 Pack, for Polymer Headers, 206A-406A, 207A-407A, R185A/B-R405A/B

Raypak 006713F Header O-Ring Gasket, 2 Pack

Part # 006713F | Genuine Raypak replacement part | For polymer-header 206A to 406A, 207A to 407A and RP2100 R185 to R405 (1998 to 2004) heaters

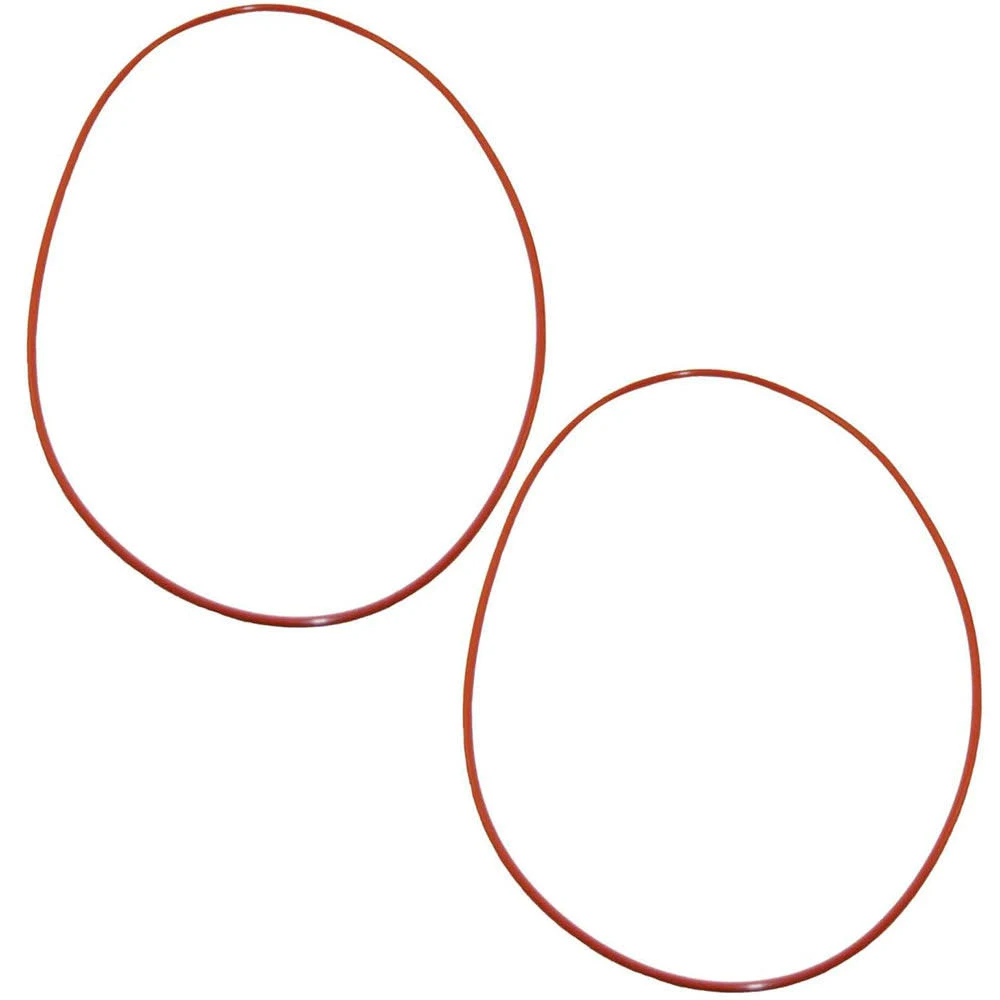

Two O-ring gaskets for Raypak heaters with polymer (Capron) headers. They seal the inlet/outlet header and the return header where each one bolts to the heat exchanger tube sheet. Raypak lists the pair in the polymer heat exchanger section of its parts lists.

✅ Fits these Raypak models:

• 206A, 266A, 336A and 406A heaters with polymer headers, built from October 2004 (Raypak's parts list also names the 266 and 399)
• Low NOx 207A, 267A, 337A and 407A heaters with polymer headers
• RP2100 R185A, R265A, R335A and R405A with polymer (Capron) headers, built November 1998 to early 2004
• RP2100 R185B, R265B, R335B and R405B with polymer headers, built October 2003 to October 2004
• Not for ASME metal headers (cast iron or bronze), which use header gasket set 800014B

🔧 Details:

• Two O-ring gaskets per kit
• Raypak part name: O-Ring Gasket (2)
• These are the header gaskets, not the O-rings for the 2 in. union connections; those are Raypak 006724F

📌 Good to know:

• Raypak's heat exchanger reversal steps say to clean the tube sheet and the header where the gasket seats, coat the gasket with a non-petroleum lubricant such as Aqualube, and keep the header nuts at or below 7 ft-lb.

Check your heater's model and serial number before ordering.
