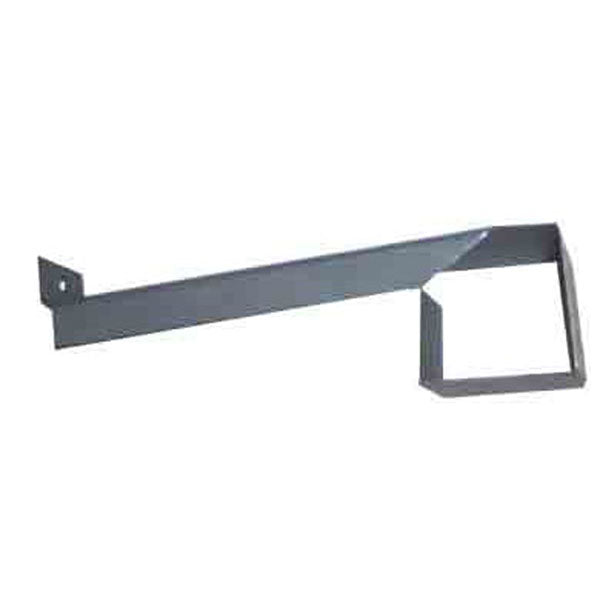

Raypak 100-10000419 Pilot Mounting Bracket, Electronic Ignition (IID), for 206A-406A (Replaces 306692)

Raypak 100-10000419 Pilot Mounting Bracket for Electronic Ignition (IID) Heaters

Part # 100-10000419 | Genuine Raypak replacement part | For 206A to 406A heaters | Replaces bracket 306692 on RP2100 R185A/B to R405A/B and Versa 185B to 405B

This bracket holds the pilot in position on the burner tray of Raypak atmospheric heaters with electronic ignition (IID). It is Raypak's current number for the bracket that was sold as 306692. Millivolt (standing pilot) and Low NOx heaters use different brackets.

✅ Fits these Raypak models:

• 206A, 266A, 336A and 406A atmospheric heaters with electronic ignition
• RP2100 R185A to R405A (November 1998 to October 2003) and R185B to R405B (October 2003 to October 2004), atmospheric with electronic ignition, where Raypak's parts lists show the earlier number 306692
• Versa 185B, 265B, 335B and 405B with electronic ignition (1988 to 1992), also listed under 306692
• Not for millivolt heaters (010352F on the 206A to 406A, 306693 on the RP2100 and Versa 185B to 405B), Low NOx heaters, the Versa 185A to 405A (305160F), the 408A (013791F) or the 106A and 156A (014889F)

🔧 Details:

• Raypak part name: Pilot Mounting Bracket IID
• Replaces Raypak 306692
• The pilot itself is a separate part, Raypak 002003F on the 206A to 406A

📌 Good to know:

• Pilot and burner tray work on a gas heater is for a qualified gas technician.

Check your heater's model and serial number before ordering.
