One part can virtually replace any pressure switch rated
up to 25 amps. Here are a few of the features:
Field adjustable from 1 to 5 psi and equipped with a visual set point
adjustable scale.
The mounting pan is constructed of rugged plastic and features a
unimold pressure fitting for superior corrosion resistance.
For spas, the 3925 Universal Pressure Switch is intended for pilot
duty control of heater contactors or where the pressure carries the
full heater load (up to 25 amps).

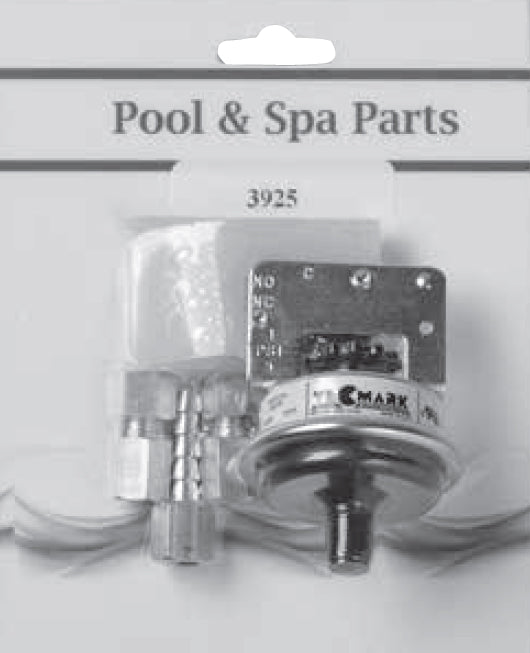

The 3925 Universal Pressure Switch consists of a 3029P Pressure
Switch with 1/8” NPT, a barb fitting and a 1/4” and a 3/16”
compression fitting adapters.
Replaces:
3925 Replaces
1/8” NPT
3010
3010P
3026
3029
3037
3037-OOAS
3037P
3037P-OOAS
3053
3053P
3078
3078P
3095
3098
3098P-OOAS
3098P
3109
3113
3113P
3134P
3134P-OOCA
3135
DD05 Barksdale
DD05SS Barksdale
EE05 Barksdale
EE05SS Barksdale
73591 Hobbs
BARBED
3028
3028P
3044P3045
3045P
3133P
3133P-OOCA
DD05-P2 Barksdale
DD05-P3 Barksdale
DD05SS-P2 Barksdale
DD05SS-P3 Barksdale
EE05-P2 Barksdale
EE05-P3 Barksdale
EE05SS-P2 Barksdale
EE05SS-P3 Barksdale
1/4” COMP.
3001
3032
3037P-CFCK
3037P-OOCK
DD05-P4 Barksdale
DD05SS-P4 Barksdale
EE05-P4 Barksdale
EE05SS-P4 Barksdale
3/16” COMP.
3021
3022
3038
3038-OOAS
3099
DD05-P1 Barksdale
DD05SS Barksdale
EE05-P1 Barksdale
EE05SS-P1 Barksdale
