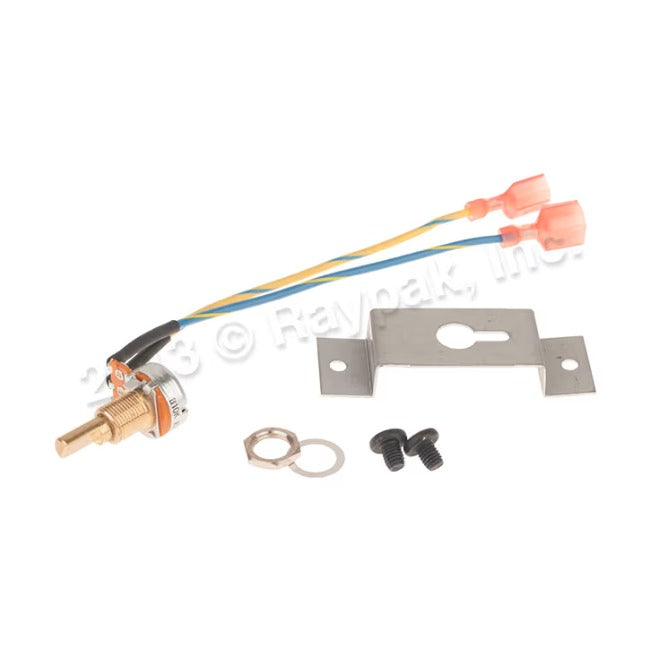

Raypak 011586F Temperature Control Potentiometer for 106A Analog and 130A DSI Heaters

Raypak 011586F Temperature Control Potentiometer for 106A and 130A Heaters

Part # 011586F | Genuine Raypak replacement part | For the 106A analog above-ground heater and the 130A with direct spark ignition

Raypak lists 011586F as the potentiometer in the controls of the 106A, the analog model in its above-ground heater line, where the water temperature is set with a dial thermostat on the front panel. A potentiometer is a variable resistor, and distributors catalog this kit as a temperature control potentiometer. The digital 156A does not use it. Raypak's 130A parts list shows the same potentiometer on the 130A with direct spark ignition.

✅ Fits these Raypak models:

• Raypak 106A above-ground pool and spa heater, 105,000 BTU, analog dial control
• Raypak 130A pool and spa heaters with direct spark ignition (DSI), built 2005 to 2013. Not for millivolt 130A heaters, which use a mechanical thermostat
• Not for the digital 156A, which is set from a touchpad

🔧 Details:

• Raypak parts list name: Potentiometer, callout 8-C, under Controls
• Other 106A control parts are separate part numbers: thermostat control 011585F, P.C. board 014923F and 2-wire temperature sensor 011587F

📌 Good to know:

• Raypak's manual lists this part but gives no test for it. Electrical diagnosis on a gas heater is for a qualified technician.

Check your heater's model and serial number before ordering.
