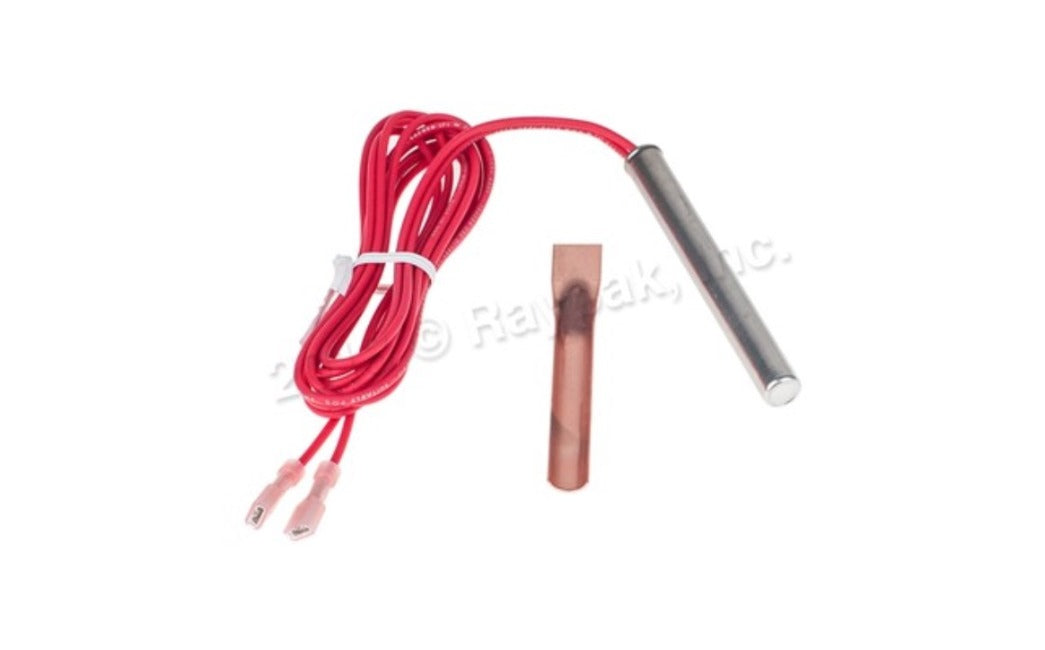

Raypak 011587F Temperature Sensor, Analog 2-Wire, for 106A and 130A DSI Heaters

Raypak 011587F Temperature Sensor, Analog 2-Wire, for 106A and 130A Heaters

Part # 011587F | Genuine Raypak replacement part | For the 106A analog above-ground heater and the 130A with direct spark ignition

This is the water temperature sensor for the Raypak 106A, the analog model in the 106A/156A above-ground heater line. The 106A's water temperature is controlled by a dial thermostat on the front panel, and this 2-wire sensor is the one Raypak lists for that control. The digital 156A takes a different, 3-wire sensor.

✅ Fits these Raypak models:

• Raypak 106A above-ground pool and spa heater, 105,000 BTU, analog dial control
• Raypak 130A pool and spa heaters with direct spark ignition (DSI), built 2005 to 2013. Not for millivolt 130A heaters, which use a mechanical thermostat
• Not for the digital 156A, which takes the 3-wire sensor 009577F

🔧 Details:

• Raypak parts list name: Temperature Sensor Analog (2-Wire), callout 9-C, under Controls
• Raypak parts library name: Kit-Temp Sensor, Electronic 130
• Other 106A control parts are separate part numbers: thermostat control 011585F, potentiometer 011586F and P.C. board 014923F

📌 Good to know:

• Raypak's 106A/156A parts list gives this 2-wire sensor to the 106A and the 3-wire sensor 009577F to the 156A. Order by the model on the rating plate.
• Electrical diagnosis on a gas heater is for a qualified technician.

Check your heater's model and serial number before ordering.
