Raypak 011605F Transformer, 120/240V to 24V, for 106A Analog and 130A DSI Heaters

Raypak 011605F Transformer, 120/240V to 24V, for 106A and 130A Heaters

Part # 011605F | Genuine Raypak replacement part | For the 106A analog above-ground heater and the 130A with direct spark ignition

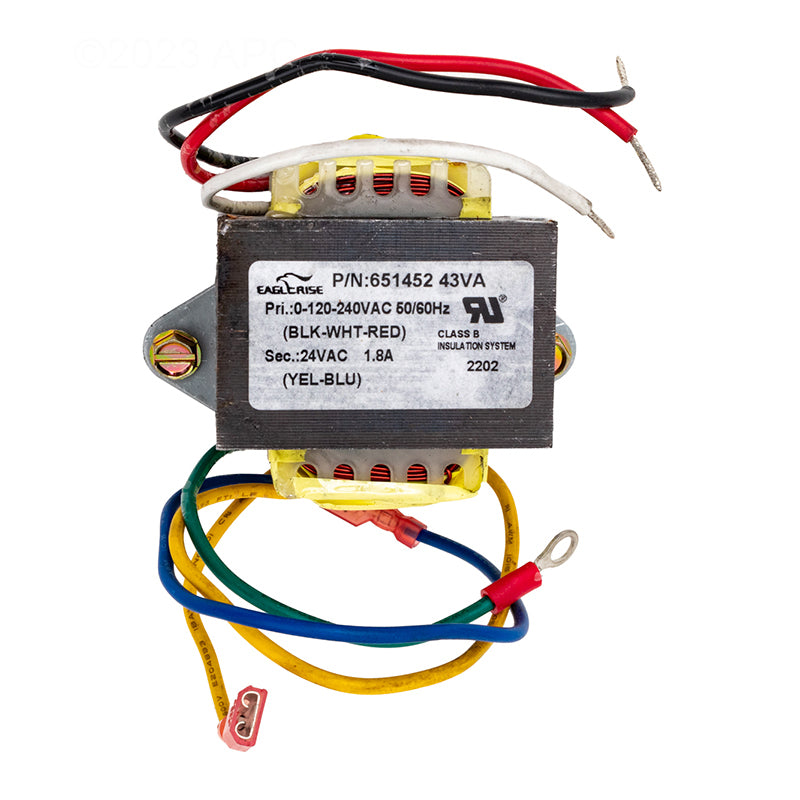

This is the control transformer for the Raypak 106A, the analog model in the 106A/156A above-ground heater line. It takes the heater's 120 or 240 volt supply and provides the 24 volts the heater's controls and gas valve run on. The digital 156A uses a different transformer.

✅ Fits these Raypak models:

• Raypak 106A above-ground pool and spa heater, 105,000 BTU, analog dial control
• Raypak 130A pool and spa heaters with direct spark ignition (DSI), built 2005 to 2013. Not for millivolt 130A heaters: Raypak lists this transformer only in the DSI control box
• Not for the digital 156A or the 206A to 406A family, which take transformer 006736F

🔧 Details:

• Raypak parts list name: Transformer 120/240/24V, Analog, callout 2-J, under Control Box
• Input 120 or 240 volts, output 24 volts
• The 106A ships with a 120 volt power cord. The manual's 240 volt conversion is made at this transformer's leads in the control box

📌 Good to know:

• The manual's 240 volt instructions say which transformer lead is capped and which leads take the supply and ground. Follow the manual and its wiring diagram; electrical work on a gas heater is for a qualified technician.

Check your heater's model and serial number before ordering.
