Coverstar A2396 CS1800/CS3000 Double Dog gear assembly, Gear, Shaft, Pin (Deck L, Recessed R) - Category: Mechanism Hardware
A2396

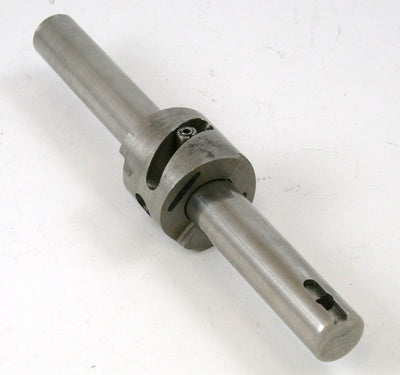

Coverstar item A2396: CS1800/CS3000 Double Dog gear assembly, Gear, Shaft, Pin (Deck L, Recessed R). Catalog category: Mechanism Hardware.
Part details
| Item number | A2396 |
|---|---|
| Manufacturer | Coverstar |
| Manufacturer description | CS1800/CS3000 Double Dog gear assembly, Gear, Shaft, Pin (Deck L, Recessed R) |
| Catalog category | Mechanism Hardware |
| Model / system references | CS1800, CS3000 |
| Number of component parts | 3 |
| Used in | 2 assemblies in the manufacturer parts catalog |
Also known as
| Manufacturer name | Coverstar |
|---|---|
| Terminology | Driveshaft = Drive Shaft = Double Dog and Shaft |
Components included
This item is supplied as an assembly or kit made up of the following parts.
| Qty | Item # | Description |
|---|---|---|
| 1 | M0327 | Double Dog Gear Deck Left, Under Guide (UG) Right (Marked Black) (CS1800/CS3000/Atom) |
| 1 | H9681 | 3/8"D x 2" L 18-8SS HD COIL PIN / Drive Pin for CS3000/Atom |
| 1 | M9337 | Shaft drive 1" x 10.25" for double pin |
Used in these assemblies
This part is a component of the following assemblies and kits.
| Assembly # | Description | Qty used |
|---|---|---|
| A0164 | CS1800/CS3000 Rope Reel Drive Assembly Complete w/Cone Under Guide (UG) Right | 1 |
| A0405 | Gear (Dog) Set Complete (Double Dog & 2 Single) (Deck Left/Under Guide (UG) Right) Black (CS1800/CS3000, Coverlux & S... | 1 |
Not sure this is the right part? Contact Premier Pool & Spa with your cover model and we will confirm fit before you order.
Find It in the store:1-U-03-B, 1-U-03-B
