Coverstar A0164 CS1800/CS3000 Rope Reel Drive Assembly Complete w/Cone UG Right
A0164

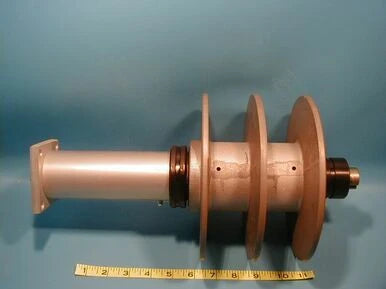

Coverstar item A0164: CS1800/CS3000 Rope Reel Drive Assembly Complete w/Cone Under Guide (UG) Right. Catalog category: Mechanism Hardware.
Part details
| Item number | A0164 |
|---|---|
| Manufacturer | Coverstar |
| Manufacturer description | CS1800/CS3000 Rope Reel Drive Assembly Complete w/Cone UG Right |
| Catalog category | Mechanism Hardware |
| Model / system references | CS1800, CS3000 |
| Number of component parts | 11 |
| Used in | 2 assemblies in the manufacturer parts catalog |
Also known as
| Manufacturer name | Coverstar |
|---|---|
| Terminology | Under Track = Under Guide = UT = UG |
Components included
This item is supplied as an assembly or kit made up of the following parts.
| Qty | Item # | Description |
|---|---|---|
| 2 | H0033 | Shifting Spring (Dog Ear) (Each) |
| 2 | M0503 | Delrin Shifting Cap (Dog Ear) (Each) |
| 1 | M0200 | Bushing for rope reel cone side UHMW 2 3/4"x1/2" {goes inside rope reel} |
| 1 | M0202 | Motor End (ME) Bushing Rope Reel-IHMW 2"x3/4" {small bushing goes inside rope reel} |
| 1 | M0205 | Bushing Shaft w/Groove & flat spot |
| 1 | M0313 | Rope Reel CS1800/CS3000 (No Gears or Bushings) |
| 1 | M0329 | Single Dog (1 Gear Only-Marked Black) (Deck Right/Recessed Left) (CS3000/Atom) |
| 1 | A0253 | CS1800/3000 Motor End (ME) Cone Assembly (w/gear, cone, & square plate) Deck Left/Under Guide (UG) Right (Red) |
| 2 | H9710 | Screw - Slot Drive Cup Point 1/4" - #20 x 3/8" stainless steel (SS) |
| 4 | H0291 | Screw - Socket Head Screw 1/4" - #20 x 3/4" |
| 1 | A2396 | CS1800/CS3000 Double Dog gear assembly, Gear, Shaft, Pin (Deck L, Recessed R) |
Used in these assemblies
This part is a component of the following assemblies and kits.
| Assembly # | Description | Qty used |
|---|---|---|
| A0012 | Mechanism CS3000 Recessed Track (RT)/Under Guide (UG) Right (New 2013) Complete Motor End (ME) w/o motor | 1 |
| A0029 | Mechanism CS3000 Deck Left (New 2013) (no motor) | 1 |
Not sure this is the right part? Contact Premier Pool & Spa with your cover model and we will confirm fit before you order.
Out of stock? Get a quote.
We can usually source this item from our suppliers. Leave your details and we will text or email you a quote, typically within one business day.
