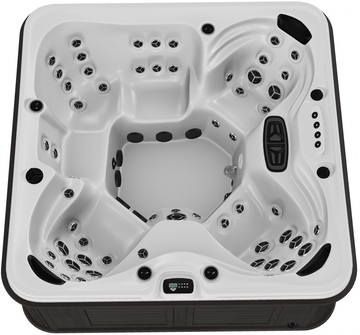

Arctic Custom Series General Parts Diagram

1
Arctic Pillow Large Pillow Adjustable w/mounting post (Custom Series)
2
JET-113010 Arctic Ripple 3" Single Pulse Jet
3
JET-113012 - Arctic 3" Jet Body Low Profile
4
JET-113020 Arctic Ripple 5" Single Pulse Jet
5
JET-113022 - Arctic 5" Jet Body Low Profile
6
Arctic Spa JET-109220 Valve, Air, Waterfall & Neck, Small Cap Handle Only, Ripple, 2020+ Custom
7
JET-110591 - Arctic (CMP) Suction Cover Black 250gpm
8
Arctic Spa 000-007239 Waterfall - Ocean Flush Mount Black
10
Arctic Spas JET-109430 Valve, Large Water Diverter, Cap Handle Only, Ripple 2020+ Custom
11
Arctic Spa JET-109422 Valve, Large Water Diverter, Internal Diverter Only, Cross Top, 09+
Arctic Spas JET-109420 Valve, Large Water Diverter, Complete Assembly, Black & Clear Bearclaw
12

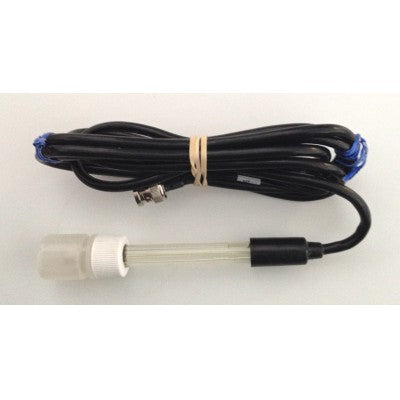

ONZ-100370 Arctic Spa Boy ORP & pH Probe
13
Arctic Spa OZZ-300021 Lippert Grate 1.5" Threaded Grey
14
LIT-106174 Arctic Lighting, Cupholder, Logo Backlit, 2020+ Custom Series Spas
15

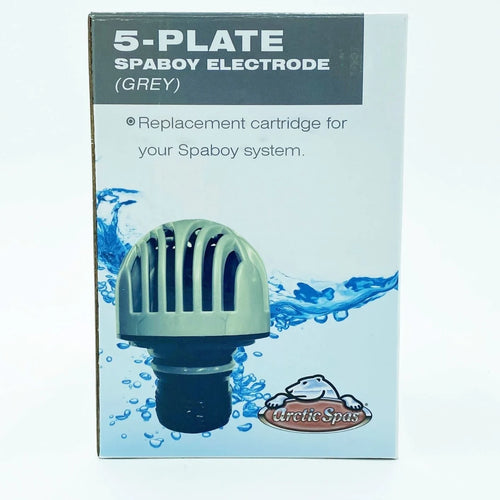

Arctic ONZ-100360 Spa Boy 5 Plate Salt Cell/Electrode Replacement - Gray
17

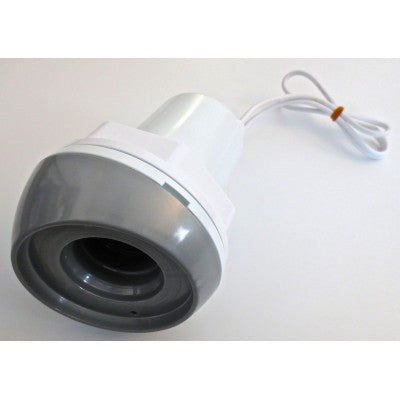

Arctic Spa ONZ-100366 Boy Housing / Niche for Spa Boy Salt Cell - Gray
16
Arctic ONZ-100360 Spa Boy 5 Plate Salt Cell/Electrode Replacement - Gray
19
Arctic Spa OZZ-300021 Lippert Grate 1.5" Threaded Grey
18

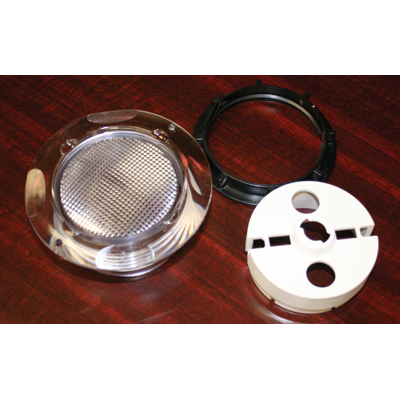

Arctic Spa INS-104855 Lighting, Light Housing 5", Complete Assembly
22

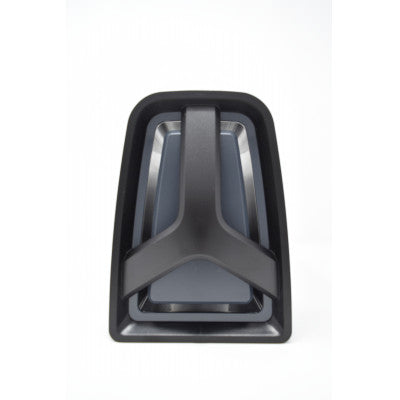

Arctic JET-113004 Filter Part, Floating Weir For 2020+ Custom Series Progressive Filters
20
Arctic Spas JET-113000 Filter Part, Dual Filter Bucket, 2020+ Custom Model Progressive Filters
23

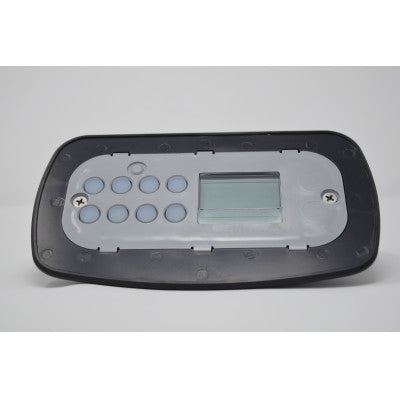

PAK-114300 - Arctic - Tsc-90 Topside Control W/O Overlay 2019+ Arctic Spa Custom (Eco Pak)
24

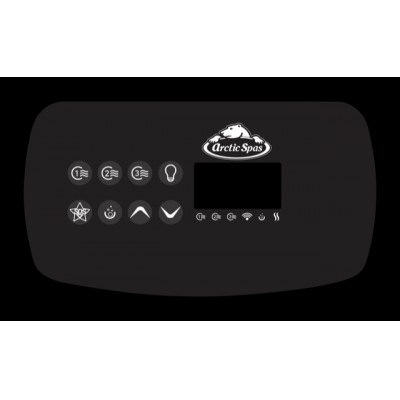

PAK-114305 - Arctic Black Overlay For TSC-90 Topside Control 2020+
25

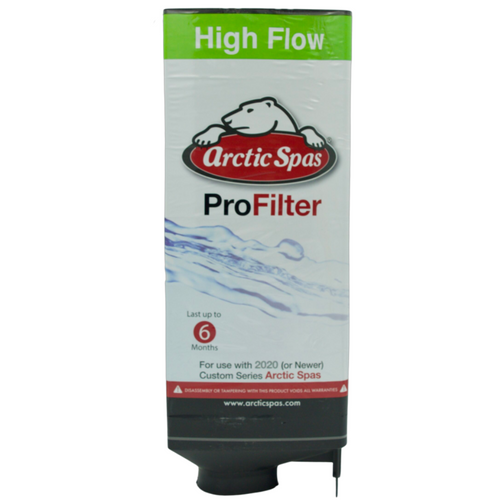

Arctic Spas PRT-900105 High Flow Progressive Filter For Custom Models 2020+
27

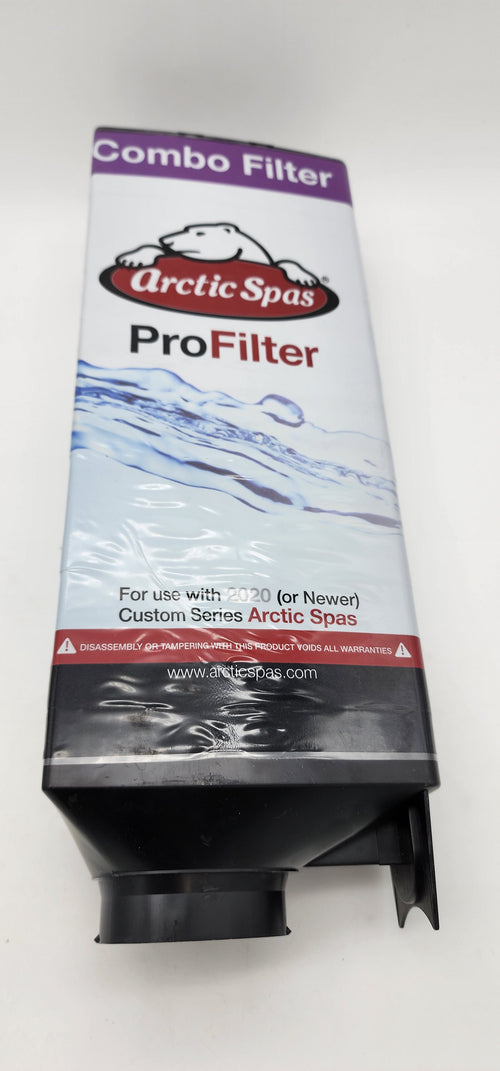

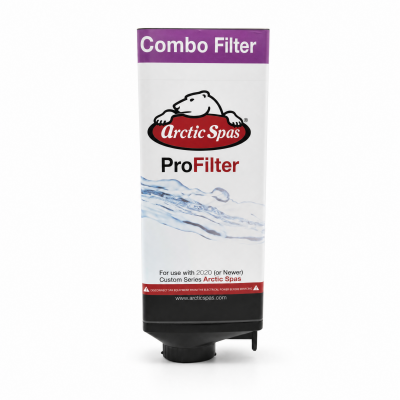

Arctic PRT-900107 Combo Progressive Filter Cartridge
26

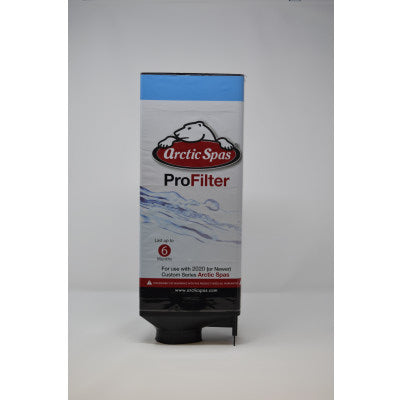

Arctic Spas PRT-900100 - Standard Progressive Filter For Custom Models 2020 - Present
28

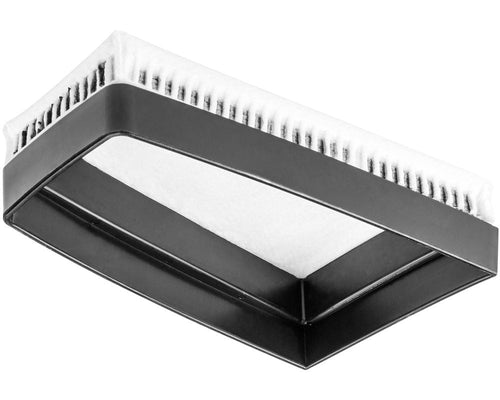

Arctic PRT-900110 Progressive Pre-Filter (5um) (For Arctic Custom Series Spas 2020-Present)
21
Arctic Spas JET-113002 Filter Part, Trim Ring For Progressive Filter Bucket
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
