15A
14
Pentair C8-58PZ Max-E-Pro/IntelliPro Strainer Basket
10
Pentair Diffuser O-Ring
3
Pentair Bonding Lug
7
Pentair Dyna-Jet Viton Shaft Seal
A
Pentair PKG188Z 2 X 2" Pump Half Unions
12
Pentair C3-185P Max-E/Dyna-Glas Strainer Cover
13
Pentair 35505-1440 Trap Cover O-Ring Replacement for Pentair Pool and Spa Inground Pumps
6
Pentair U9-373Z Max-E-Pro/Dyna-Glas Seal Plate 2" O-Ring

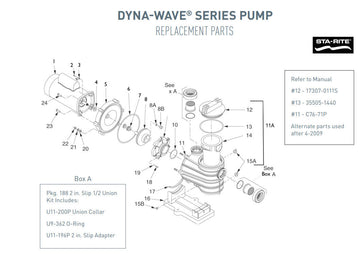

Check the parts blowup above for the most common replacement part for the Pentair Sta-Rite Dyna-Wave Pumps. The parts list below shows the most common part replacement along with any substitutions that could be used.
| Diagram # | Sku | Image | Title | Price | Quantity for Product | # to Add to Cart | Actions |
|---|---|---|---|---|---|---|---|
| 6 | U9-373Z |
|
Pentair U9-373Z Max-E-Pro/Dyna-Glas Seal Plate 2" O-Ring | $9.99 |
|
|
|
| 9 | C1-270P |
|
Pentair C1-270P Diffuser | $36.99 |
|
|
|
| 25 | U9-362 |
|
U9-362 Pentair Union O-Ring | $7.77 |
|
|
|
| 13 | 35505-1440 |
|
Pentair 35505-1440 Trap Cover O-Ring Replacement for Pentair Pool and Spa Inground Pumps | $26.02 |
|
|
|
| 12 | C3-185P |
|
Pentair C3-185P Max-E/Dyna-Glas Strainer Cover | $91.15 |
|
|
|
| BoxA | PKG188Z |
|
Pentair PKG188Z 2 X 2" Pump Half Unions | $32.82 |
|
|
|
| 7 | 17351-0101s |
|
Pentair Dyna-Jet Viton Shaft Seal | $31.00 |
|
|
|
| 3 | U17-568 |
|
Pentair Bonding Lug | $15.63 |
|
|
|
| 26 | U11-200PS |
|
Pentair System2/3 Union Collar | $12.99 |
|
|
|
| 6 | U9-373 |
|
Pentair Max-E/Dyna-Glas Seal Plate 2" O-Ring | $9.99 |
|
|
|
| 10 | U9-374 |
|
Pentair Diffuser O-Ring | $6.99 |
|
|
|
| 13 | U9-375 |
|
U9-375 Replacement for Pentair Max-E/Dura-Glas Cover O-Ring | $26.06 |
|
|
|
| 14 | C8-58PZ |
|
Pentair C8-58PZ Max-E-Pro/IntelliPro Strainer Basket | $19.99 |
|
|
|
| 15A | U178-920PZ |
|
Pentair U178-920P Pump Drain Plug 1/4" NPT | $10.34 |
|
|
