1
Pentair 070387Z Strainer Basket for WhisperFlo, IntelliFlo, VS+SVRS and IntelliFlo VF Pumps
7
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps
10
Pentair 355227Z Diffuser O-Ring, 3.484 in. x 0.139 in., Buna-N 70 for IntelliFlo, WhisperFlo and IntelliPro Pumps
11
13
Pentair 071660 Set Screw #4-40x1-1/8" 2 REQ
16
Pentair 072928 Diffuser Assembly, Black, for WhisperFlo 3 HP and IntelliFlo Pumps Made Before 10/2020
18
Pentair 075713 Impeller Set Screw Rubber Washer for IntelliFlo VF, WhisperFlo WFE and C-Series Pumps
17
Pentair 073131 Impeller for IntelliFlo VS and VF 3 HP Pumps, Made Before 10/2020
24
Pentair 357151 See-Through Lid for WhisperFlo and IntelliFlo Inground Pumps
30
Pentair 350601 Drive Control Cover Assembly Kit, Almond, for IntelliFlo VS+SVRS and IntelliFlo VF Pumps - Discontinued - Limited Qty
25
Pentair 357199 Clamp, Cam and Ramp for WhisperFlo, IntelliFlo and IntelliPro Pumps
27
Pentair 350621 Junction Box Cover, Almond, for IntelliFlo VF Pumps
23
Pentair 357102 Almond Seal Plate Gasket for WhisperFlo Pumps
20
Pentair 350013Z Lid O-Ring 2-436 Buna for IntelliFlo, VS+SVRS, WhisperFlo and Challenger Pumps
35
Pentair 071734S Mechanical Seal, Impeller to Plate, for IntelliFlo, WhisperFlo, IntelliPro and Booster Pumps
Check the parts blowup above for the most common replacement part for the Intelliflo Variable Speed Pump- Before 2019 and the Intelliflo VS+SVRS Pump - Before June 2016.  The parts list below shows the most common part replacement along with any substitutions that could be used.

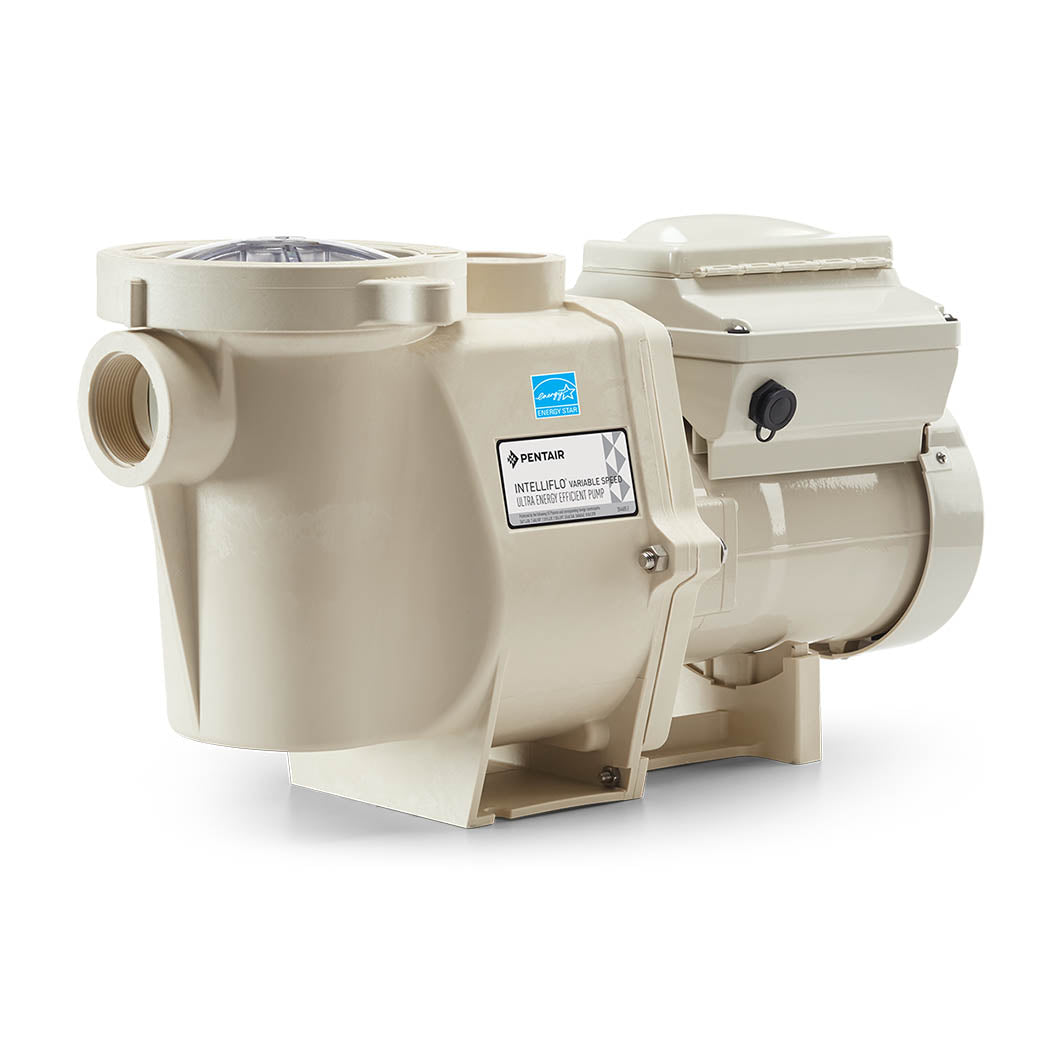

Intelliflo Variable Speed Pump- Before 2019 Intelliflo VS+SVRS Pump - Before June 2016

Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
00 357149
Pentair 357149 Almond Volute/Seal Plate Replacement Kit for IntelliFlo and WhisperFlo Pumps $275.00
1 350122z
Pentair 350122z 50 Ft. 2-Conductor Communication Cable for IntelliFlo and IntelliPro VS+SVRS Pumps $163.00
1 070387Z
Pentair 070387Z Strainer Basket for WhisperFlo, IntelliFlo, VS+SVRS and IntelliFlo VF Pumps $18.99 1
7 071131Z
Pentair 071131Z Drain Plug, Almond, for IntelliFlo, WhisperFlo and SuperFlo Pumps $8.99 1
10 355227Z
Pentair 355227Z Diffuser O-Ring, 3.484 in. x 0.139 in., Buna-N 70 for IntelliFlo, WhisperFlo and IntelliPro Pumps $4.99 1
13 071660
Pentair 071660 Set Screw #4-40x1-1/8" 2 REQ $4.31 1
16 072928
Pentair 072928 Diffuser Assembly, Black, for WhisperFlo 3 HP and IntelliFlo Pumps Made Before 10/2020 $375.00 1
18 075713
Pentair 075713 Impeller Set Screw Rubber Washer for IntelliFlo VF, WhisperFlo WFE and C-Series Pumps $4.00 1
17 073131
Pentair 073131 Impeller for IntelliFlo VS and VF 3 HP Pumps, Made Before 10/2020 $158.00 1
19 192115Z
Pentair 192115Z Drain Plug O-Ring, 1/16 x 1/2 in. I.D., for Tagelus, Triton II Sand Filters and Select Pumps $3.99 1
20 350013Z
Pentair 350013Z Lid O-Ring 2-436 Buna for IntelliFlo, VS+SVRS, WhisperFlo and Challenger Pumps $5.99 1
23 357102
Pentair 357102 Almond Seal Plate Gasket for WhisperFlo Pumps $7.99 1
23 357100
Pentair 357100 Seal Plate Gasket for WhisperFlo and IntelliFlo Pumps $9.99 1
24 357151
Pentair 357151 See-Through Lid for WhisperFlo and IntelliFlo Inground Pumps $30.00 1
25 357199
Pentair 357199 Clamp, Cam and Ramp for WhisperFlo, IntelliFlo and IntelliPro Pumps $60.67 1
27 350621
Pentair 350621 Junction Box Cover, Almond, for IntelliFlo VF Pumps $34.13 1
30 350601
Pentair 350601 Drive Control Cover Assembly Kit, Almond, for IntelliFlo VS+SVRS and IntelliFlo VF Pumps - Discontinued - Limited Qty $283.09 1
35 071734S
Pentair 071734S Mechanical Seal, Impeller to Plate, for IntelliFlo, WhisperFlo, IntelliPro and Booster Pumps $32.99 1
36 074564Z
Pentair 074564Z Seal Plate, Almond, for IntelliFlo and WhisperFlo Pumps $103.00 1
