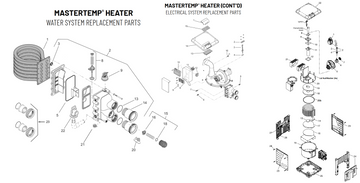

Check the parts blowup above for the most common replacement part for the Pentair Mastertemp Heater.  The parts list below shows the most common part replacement along with any substitutions that could be used.

MasterTemp Heater

Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
00WS 77707-0120
Pentair 77707-0120 Manifold/Tube Sheet Coil O-Ring Kit for MasterTemp and Sta-Rite Max-E-Therm Heaters $47.99
00BS 460755
Pentair 460755 Natural Gas to Propane Conversion Kit for MasterTemp 300 Heaters $54.99
00BS 77707-1441
Pentair 77707-1441 Natural Gas to Propane Conversion Kit for Max-E-Therm and MasterTemp 400 Heaters $57.99
00BS 77707-0008
Pentair 77707-0008 Insulation Service Kit for MasterTemp and Max-E-Therm Heaters $150.00
00BS 77707-0011
Pentair 77707-0011 Blower/Adapter Plate Gasket Kit for MasterTemp and Max-E-Therm Heaters $65.99
00BS 460746
Pentair 460746 Flameholder Service Kit for MasterTemp 250 Heaters $138.00
00BS 461100
Pentair 461100 Pro Service Package Heater Master Kit for MasterTemp and Max-E-Therm Heaters $1,000.00
00ES 32850-0099Z
Pentair 32850-0099Z Fireman's Switch Fuse, 240V 1.25A, for ETi 250 and MasterTemp Heaters $9.99
00ES 42001-0105S
Pentair 42001-0105S 120/240 Volt Plug Kit for MasterTemp and Max-E-Therm Heaters $47.00
1WS 77707-0232
Pentair 77707-0232 Tube Sheet Coil Assembly Kit for MasterTemp 175 and 200, Max-E-Therm SR200 NA/LP Heaters $800.00
1WS 474061
Pentair 474061 Tube Sheet Coil Assembly Kit for MasterTemp and Max-E-Therm 400NA, 400LP Heaters (After 1/12/09) $1,350.00
1WS 474060
Pentair 474060 Tube Sheet Coil Assembly Kit for MasterTemp 300 NA/LP Heaters After 1/12/09 $1,100.00
1WS 474058
Pentair 474058 Tube Sheet Coil Assembly Kit for MasterTemp and Max-E-Therm 175NA, 175LP, 200NA and 200LP Heaters $850.00
1WS 474059
Pentair 474059 Tube Sheet Coil Assembly Kit for MasterTemp 250 NA/LP Heaters (After 1/12/09) $1,000.00
1BS 42001-0051S
Pentair 42001-0051S Combination Gas Control Valve Kit for MasterTemp and Sta-Rite Max-E-Therm Heaters $400.00
2WS 460748
Pentair 460748 Manifold Kit for MasterTemp 250 NA/LP Heaters $550.00
15WS 77707-0010
Pentair 77707-0010 Thermal Regulator Kit for MasterTemp and Max-E-Therm Heaters $102.00
16WS 38000-0007S
Pentair 38000-0007S Thermal Regulator with Spring Clip for Max-E-Therm and MasterTemp Heaters $72.99
9WS 42001-0060S
Pentair 42001-0060S Water Pressure Switch for MasterTemp Heaters $81.99
23WS PKG188Z
Pentair PKG188Z 2" Slip Half Union Package for IntelliPro (Before 2019), Max-E-Pro, Dyna-Pro and Dyna-Wave Pumps $27.00
20WS U178-920PZ
Pentair U178-920PZ 1/4 in. NPT Drain Plug with O-Ring for Triton II Sand Filters, Multiport Side Mount Valves and Dyna-Glas, JWP, JWPA Pumps $6.99
8WS 77707-0001
Pentair 77707-0001 Manifold Bypass Valve Kit for MasterTemp and Max-E-Therm Heaters $58.99
5BS 460743
Pentair 460743 Air Blower Kit for MasterTemp 250NA Natural Gas Heaters $700.00
5BS 460744
Pentair 460744 Combustion Air Blower Kit for MasterTemp 250LP Propane Heaters $608.00
7BS 460745
Pentair 460745 Air Orifice Kit, Propane to NG Conversion for Model 250 Heaters $62.99
3ES 77707-0054
Pentair 77707-0054 Igniter with Gasket Kit for MasterTemp and Max-E-Therm Heaters $83.89
5ES 42002-0025S
Pentair 42002-0025S Automatic Gas Shutoff Switch (AGS), 140F, for MasterTemp and Max-E-Therm Heaters $38.00
6ES 42001-0063S
Pentair 42001-0063S High Limit Switch for MasterTemp and Max-E-Therm Heaters $63.99
7ES 42001-0053S
Pentair 42001-0053S Thermistor for MasterTemp and Max-E-Therm Heaters $80.14
8ES 42001-0056S
Pentair 42001-0056S Terminal Board for MasterTemp and Max-E-Therm Heaters $55.99
11ES 42001-0107S
Pentair 42001-0107S Dual Voltage Transformer, 115/230V, for MasterTemp and Max-E-Therm Heaters $54.00
12ES 42001-0061S
Pentair 42001-0061S Air Flow Switch for MasterTemp and Max-E-Therm Heaters $133.00
13ES 461105
Pentair 461105 Control Board Kit with 6 Button Membrane Pad for MasterTemp and Max-E-Therm NA/LP Heaters $767.75
15ES 472610Z
Pentair 472610Z Five Button Membrane Keypad for MasterTemp and Max-E-Therm Heaters (Made Before 5/5/2021) $109.00
