Pentair System 2: PLM Filter Systems 2009 And Later

14
Pentair 155333CP Universal Systems Base, CSA Pump (OptiFlo), for Clean & Clear and PLM Aboveground Filters - Discontinued - Limited Qty
18
Pentair U9-226Z O-Ring, Union for JWP Pumps, O-Ring 2-226 Buna 70
6
Pentair 24800-0121 Air Bleed Assembly for System 2 PLM100 and PLM150 Sand Filters
10
Pentair 27001-0022 1-1/2 in. NPT Plug with O-Ring for Sta-Rite PLM and PLD Filters
2
Pentair 25010-0200 Air Release Valve Assembly for System 2 PLM and PLD Filters
12
Pentair 27001-0130S Spring Check Valve for System 2 PLM and PLD Filters
15
1
Pentair 15060-0000TZ Bottom Mount Pressure Gauge, 2", 1/4" NPT, for PLM Filter Systems 2009 and Beyond
9
Pentair 27001-0051 Posi-Lok Ring Safety Latch for System 2 PLM, PLD and PLDE Filters
7
Pentair 27002-0150S Replacement Module for System 2 Modular Media Filter PLM150, 150 Sq. Ft.

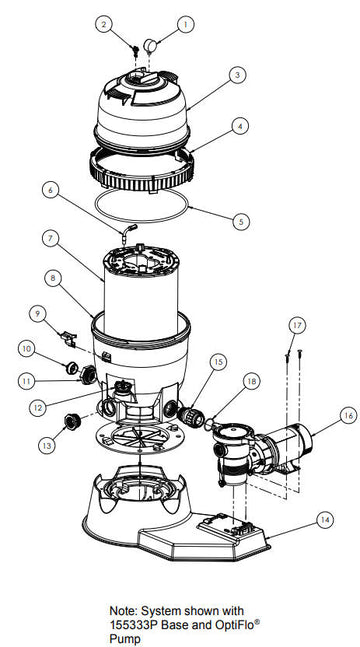

Check the parts blowup above for the most common replacement part for the Pentair System 2: PLM Filter Systems 2009 And Later.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
0 155005
Pentair 155005 Flex Hose Kit, 1-1/2 in. x 12 ft., for Clean & Clear and PLM Aboveground Filter Systems - Discontinued - Limited Qty $109.99 1
0 155151
Pentair 155151 Flex Hose Kit, 1-1/2 in. x 6 ft., for Clean & Clear and PLM Aboveground Filter Systems - Discontinued - Limited Qty $78.00 1
7 27002-0150S
Pentair 27002-0150S Replacement Module for System 2 Modular Media Filter PLM150, 150 Sq. Ft. $375.00 1
9 27001-0051
Pentair 27001-0051 Posi-Lok Ring Safety Latch for System 2 PLM, PLD and PLDE Filters $22.14 1
1 15060-0000TZ
Pentair 15060-0000TZ Bottom Mount Pressure Gauge, 2", 1/4" NPT, for PLM Filter Systems 2009 and Beyond $42.99 1
12 27001-0130S
Pentair 27001-0130S Spring Check Valve for System 2 PLM and PLD Filters $24.99 1
2 25010-0200
Pentair 25010-0200 Air Release Valve Assembly for System 2 PLM and PLD Filters $36.99 1
10 27001-0022
Pentair 27001-0022 1-1/2 in. NPT Plug with O-Ring for Sta-Rite PLM and PLD Filters $8.03 1
6 24800-0121
Pentair 24800-0121 Air Bleed Assembly for System 2 PLM100 and PLM150 Sand Filters $15.00 1
18 U9-226Z
Pentair U9-226Z O-Ring, Union for JWP Pumps, O-Ring 2-226 Buna 70 $4.99 1
14 155333CP
Pentair 155333CP Universal Systems Base, CSA Pump (OptiFlo), for Clean & Clear and PLM Aboveground Filters - Discontinued - Limited Qty $129.00 1
