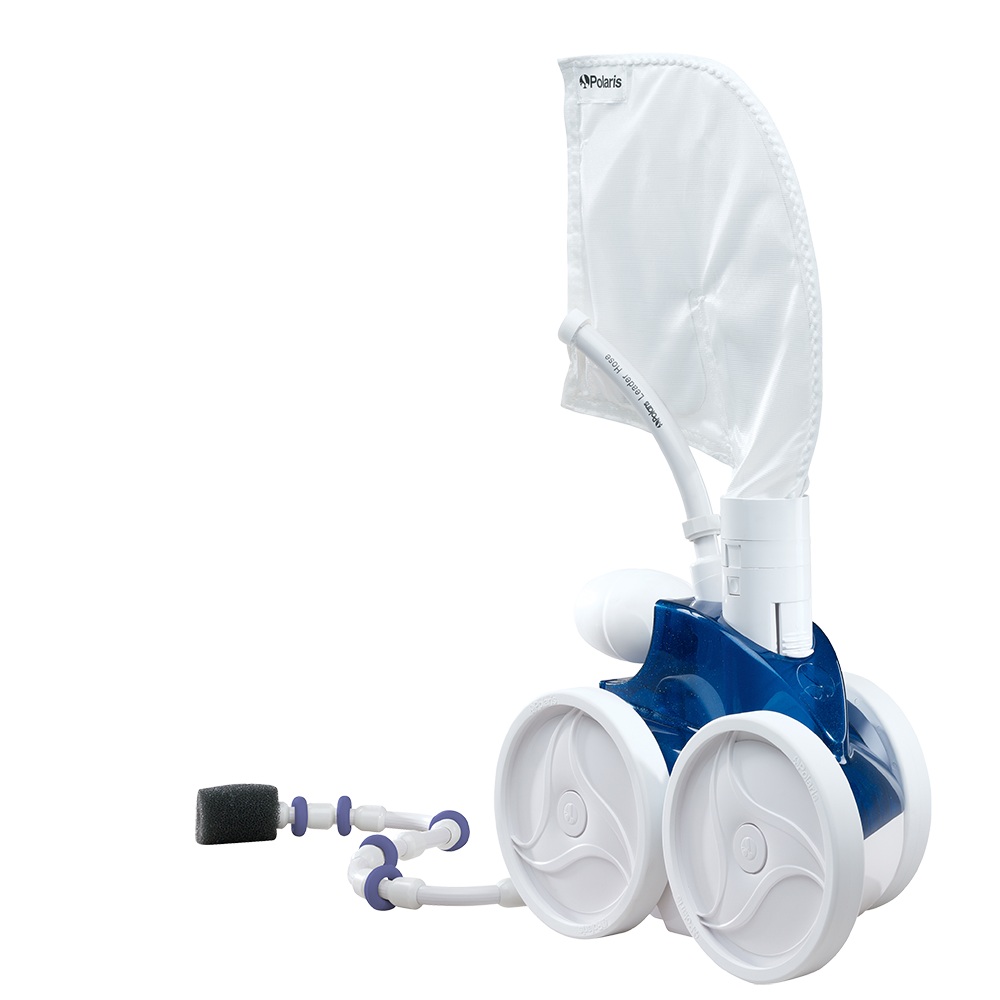

Polaris Vac-Sweep 380 Parts Diagram

Polaris Vac-Sweep 380 Parts Diagram

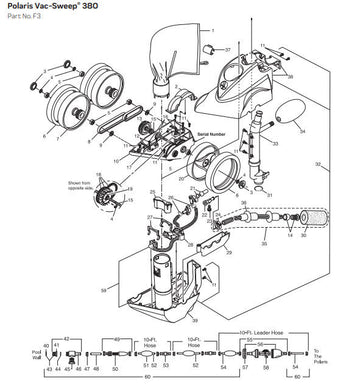

Check the parts blowup above for the most common replacement part for the Polaris 380.  The parts list below shows the most common part replacement along with any substitutions that could be used.




Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
1 9-100-1021
Polaris 9-100-1021 Zippered All-Purpose Bag 380/360 $44.99 1
2 9-100-1152
Zodiac 9-100-1152 Housing Turbine Upper for Polaris 380/360 $7.99 1
3 9-100-1114
Polaris 9-100-1114 Hub Cap, 380/360/340 $8.99 3
4 9-100-5107
Polaris 9-100-5107 E-clip Stainless Steel 380/360/ATV 5 pack $2.99 10
5 9-100-1108
Polaris 9-100-1108 Ball Bearing for Automatic Pool Cleaners $8.99 8
6 C10
Polaris C10 Tire, Maxtrax, 380/360/280/180 $13.99 3
7 9-100-1008
Polaris 9-100-1008 Wheel, Double-Side for 380 or 360 $15.99 2
8 9-100-1017
Polaris 9-100-1017 Small and Large Belt Replacement Kit $39.99 1
9 9-100-7011
Polaris 9-100-7011 Bearing Shield for Polaris 360/380/ATV $2.99 3
10 9-100-1005
Polaris 9-100-1005 Complete Frame for Automatic Pool Cleaners $84.99 1
11 9-100-5125
Polaris 9-100-5125 Screw 8-32 x 1/2" SS Pan Head $4.99 11
12 9-100-1139
Polaris 9-100-1139 Axle Block Kit (front and rear) $21.99 1
13 9-100-1010
Polaris 9-100-1010 Belt Divider Transfer Pulley $3.99 1
14 B25
Polaris B25 Orifice Tip with Orifice Tip Guard, for Polaris 380/280/180 $3.99 1
15 9-100-1007
Polaris 9-100-1007 Transfer Pulley/Drive Shaft Assembly $22.99 1
16 9-100-5115
Polaris 9-100-5115 Screw 8-32 x 3/4" SS Pan Head $2.99 4
17 9-100-5130
Polaris 9-100-5130 Axle Block Lock Washer Replacement (4-pack) $1.99 4
19 9-100-1103
Polaris 9-100-1103 Turbine Wheel w/Bearing Replacement $14.99 1
20 9-100-1116
Polaris 9-100-1116 Single-Side Wheel for some Polaris Pool Cleaners $13.99 1
21 C131
Polaris C131 Thrust Jet Kit $6.99 1
22 9-100-7008
Polaris 9-100-7008 Sweep Hose Barb Complete 380/360 $6.99 1
23 B20
Polaris B20 Adjustment Screw for Sweep Hose $3.99 1
24 B15
Polaris B15 Sweep Hose Attach Clamp $2.99 1
25 9-100-9004
Polaris 9-100-9004 Base Weight for Polaris 380 $15.99 1
26 9-100-7170
Polaris 9-100-7170 Hose Clamp for Polaris Cleaners 6/pk $4.49 6
27 9-100-7009
Polaris 9-100-7009 Jet Retainer Replacement for Zodiac Polaris Pool Cleaner $5.99 2
28 9-100-7010
Polaris 9-100-7010 Water Management System $39.99 1
29 9-100-1155
Polaris 9-100-1155 Lower Turbine Housing $6.99 1
30 9-100-3105
Polaris 9-100-3105 Sweep Hose Scrubber $3.99 1
30 R0522400
Polaris R0522400 Sweep Hose Scrubber for Cleaners 3 pack $8.99 1
31 9-100-5132
Polaris 9-100-5132 O-Ring, Feed Pipe Assembly $3.99 1
32 9-100-7030
Polaris 9-100-7030 Top and Base Assembly Complete Kit Replacement $99.99 1
33 9-100-7003
Polaris 9-100-7003 Feed Pipe and Timer Blank Replacement Assembly $18.99 1
34 A20
Polaris A20 Float, Head $7.99 1
34 25563-120-000
CMP 25563-120-000 Pool Cleaner White Generic Hose Float $8.49 1
18 9-100-1132
Polaris 9-100-1132 Drive Train Gear Kit with Turbine Bearing, 380/360 $22.99 1
35 B5
Polaris B5 Sweep Hose Complete $39.99 1
36 B10
Polaris B10 Wear Rings, Pack of 5 $12.99 8
37 9-100-1018
Polaris 9-100-1018 Bag Clip 380/280 $2.99 1
38 9-100-1240
Polaris 9-100-1240 Top Housing for a 380/360 $39.99 1
40 10-112-00
Polaris 10-112-00 UWF Restrictor Disk Kit 180/280/380 $4.99 1
41 6-500-00
Polaris 6-500-00 Universal Wall Fitting $4.99 1
42 9-100-9001
Polaris 9-100-9001 UWF Connector Assembly $35.99 1
43 10-108-00
Polaris 10-108-00 UWF Restrictor Kit PVS $9.99 1
47 ED15
Pentair ED15 Legend Feed Hose Mender Nut $8.99 47
47 D15
Polaris D15 Nut, Feed Hose $3.99 1
49 48-080
Polaris 48-080 In-line Filter Assembly $69.99 1
