Polaris 480 Pro Parts Diagram

Polaris 480 Pro Parts Diagram

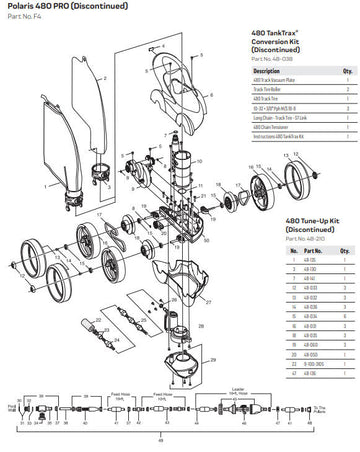

Check the parts blowup above for the most common replacement part for the Polaris 480.  The parts list below shows the most common part replacement along with any substitutions that could be used.

Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
14 48-036
Polaris 48-036 Wheel Lock Nut Replacement for Zodiac Polaris Pool Cleaner, Set of 3 $13.34 3
22 9-100-3105
Polaris 9-100-3105 Sweep Hose Scrubber $4.99 1
24 B10
Polaris B10 Wear Rings, Pack of 5 $3.34 8
25 B5
Polaris B5 Sweep Hose Complete $46.42 1
30 10-112-00
Polaris 10-112-00 UWF Restrictor Disk Kit 180/280/380 $4.99 1
31 10-108-00
Polaris 10-108-00 UWF Restrictor Kit PVS $9.80 1
32 6-500-00
Polaris 6-500-00 Universal Wall Fitting $7.99 1
33 6-505-00
Polaris 6-505-00 Universal Wall Fitting and Quick Disconnect O-Ring Replacement $2.70 1
34 9-100-9002
Polaris 9-100-9002 Pressure Relief Valve $13.18 1
36 9-100-9001
Polaris 9-100-9001 UWF Connector Assembly $41.98 1
37 D15
Polaris D15 Nut, Feed Hose $3.99 1
39 48-080
Polaris 48-080 In-line Filter Assembly $64.99 1
40 48-222
Polaris 48-222 In-Line Filter Screen $15.22 1
42 D20
Polaris D20 Ball Bearing Swivel for Pool Cleaners $15.20 2
43 D45
Polaris D45 Feed Hose Section (10 feet, White) $39.42 2
45 G52
Polaris G52 Back-up Valve Kit $110.61 1
48-140
Polaris 48-140 Feed Hose Connector Assembly $24.40 1
