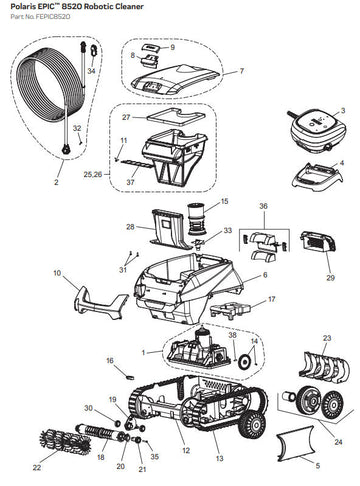

Polaris EPIC 8520 Robotic Cleaner Parts Diagram

4
Polaris R0662600 Control Unit Base
30
Polaris C60 Wheel Ball Bearing for 180, 280, TR28P and Quattro Sport Pressure Cleaners
31
Polaris R0516700 Motor Block Screw Kit, M4 x 12 mm, 5 Pack, for 9300, 9300xi Sport and Freedom Robotic Cleaners
32
Polaris R0608500 Screw, M4 x 16 mm, 5 Pack, for FREEDOM Cordless Cleaner
33
Polaris R0633200 Impeller for FREEDOM Cordless Robotic Cleaner
34
Polaris R0608500 Screw, M4 x 16 mm, 5 Pack, for FREEDOM Cordless Cleaner
35
Polaris R0638900 Screw 4 x 25 mm, Set Of 5
38
Polaris R0657900 Motor Block Shaft Pin 04, 5 Pack, for FREEDOM Cleaner
Check the parts blowup above for the most common replacement part for the Polaris EPIC 8520 Cleaner.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
4 R0662600
Polaris R0662600 Control Unit Base $15.99 1
30 C60
Polaris C60 Wheel Ball Bearing for 180, 280, TR28P and Quattro Sport Pressure Cleaners $13.99 1
31 R0516700
Polaris R0516700 Motor Block Screw Kit, M4 x 12 mm, 5 Pack, for 9300, 9300xi Sport and Freedom Robotic Cleaners $11.99 1
32 R0608500
Polaris R0608500 Screw, M4 x 16 mm, 5 Pack, for FREEDOM Cordless Cleaner $4.99 1
33 R0633200
Polaris R0633200 Impeller for FREEDOM Cordless Robotic Cleaner $8.99 1
34 R0634100
Polaris R0634100 Connector 3-Point Body $6.99 1
35 R0638900
Polaris R0638900 Screw 4 x 25 mm, Set Of 5 $4.99 1
38 R0657900
Polaris R0657900 Motor Block Shaft Pin 04, 5 Pack, for FREEDOM Cleaner $7.04 1
