Polaris TR35P Parts Diagram

1
Polaris 9-100-1022 Vac-Sweep Zippered All-Purpose Bag, Black, for 380, 360, TR35P and TR36P Cleaners
4
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
4
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
4
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
5
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
5
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
5
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
6
Polaris C11 Vac-Sweep MaxTrax Tire, Black
7
Polaris R0615700 Double-Side Wheel, Silver, for TR35P and TR36P Pressure Cleaners
8
Polaris 9-100-1017 Belt Kit, Small and Large, for Vac-Sweep 360, 380 Pressure Cleaners
9
Polaris 9-100-7011 Bearing Shield for 380 and 360 Pressure Cleaners
10
Polaris 9-100-1139 Axle Block Kit (front and rear) for Vac-Sweep 380 and 360 Cleaners
12
Polaris 9-100-1139 Axle Block Kit (front and rear) for Vac-Sweep 380 and 360 Cleaners
15
Polaris 9-100-1007 Transfer Pulley Drive Shaft Assembly for 360 and 380 Vac-Sweep Cleaners
15
Polaris 9-100-1007 Transfer Pulley Drive Shaft Assembly for 360 and 380 Vac-Sweep Cleaners
16
Polaris 9-100-5115 Screw, 8-32 x 3/4 in SS Pan Head
18
Polaris 9-100-1132 Drive Train Gear Kit with Turbine Bearing for Vac-Sweep 360 and 380 Pool Cleaners
19
Polaris 9-100-1103 Turbine Wheel with Bearing for Vac-Sweep 360 and 380 Pool Cleaners
21
Polaris C131 Thrust Jet Kit for 380, 360, 280 and 180 Vac-Sweep Cleaners
24
Polaris B16 Sweep Hose Attach Clamp, Black, for 3900 Sport, 380, 360 and 280 Cleaners
27
Polaris 9-100-7009 Jet Retainer, 2 Pack, for Vac-Sweep 380 and 360 Cleaners
28
Polaris 9-100-7010 Water Management System (WMS) for Vac-Sweep 360 and 380 Cleaners
30
Polaris 9-100-3105 Vac-Sweep Sweep Foam Scrubber for 380
31
Polaris 9-100-5132 Feed Pipe Assembly O-Ring for Vac-Sweep 360 and 380 Pool Cleaners
34
Polaris A21 Float, Head, Black, for 280, 360 and 380 Vac-Sweep Cleaners
35
Polaris 39-500 Sweep Hose Complete for 3900 Series Pool Cleaners
40
Polaris 10-112-00 Universal Wall Fitting Restrictor Disks, Red and Blue, for 180, 280, 380 and 3900 Sport Cleaners
41
Polaris 6-550-00 Universal Wall Fitting, Black, for 380, 360 and 280 Cleaners
42
Polaris 9-100-9005 Vac-Sweep UWF Connector Assembly, Black
43
Polaris 10-108-00 Universal Wall Fitting Restrictor Kit for 180, 280, 380 and 3900 Sport Pressure Cleaners
44
Polaris 6-505-00 Universal Wall Fitting/Quick Disconnect O-Ring for 180, 280, 380 and 480 Pool Cleaners
45
Polaris 9-100-9006 Pressure Relief Valve Assembly, Black, for 3900 Sport Cleaners
49
Polaris 48-085 In-Line Filter Assembly, Black, for 3900 Sport and TR35P Cleaners
50
Polaris 48-222 In-Line Filter Screen for 280, 380, 480 and 3900 Sport Cleaners
55
Polaris G62 Back-Up Valve Kit, Black, for 280, 380, TR35P and TR36P Pressure Cleaners
56
Polaris G64 Case Kit for G62 Back-Up Valve, Black
57
Polaris G67 Back-Up Valve Collar, Black, for 180, 280, 360 and 380 Cleaners
61
Polaris TSP10P Tail Sweep Pro, 18 Pack Bulk, for Three-Wheel Pressure Cleaners

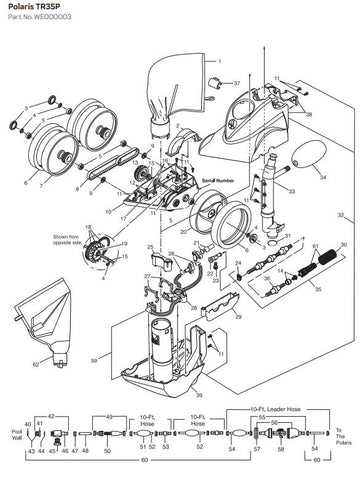

Check the parts blowup above for the most common replacement part for the Polaris TR35P Pool Cleaner.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
1 9-100-1022
Polaris 9-100-1022 Vac-Sweep Zippered All-Purpose Bag, Black, for 380, 360, TR35P and TR36P Cleaners $42.00 1
4 9-100-5107
Polaris 9-100-5107 E-Clip, Stainless Steel, for Vac-Sweep 340, 360 and 380 Pool Cleaners $2.00 10
5 9-100-1108
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners $11.00 8
6 C11
Polaris C11 Vac-Sweep MaxTrax Tire, Black $15.99 1
7 R0615700
Polaris R0615700 Double-Side Wheel, Silver, for TR35P and TR36P Pressure Cleaners $17.00 1
8 9-100-1017
Polaris 9-100-1017 Belt Kit, Small and Large, for Vac-Sweep 360, 380 Pressure Cleaners $24.00 1
9 9-100-7011
Polaris 9-100-7011 Bearing Shield for 380 and 360 Pressure Cleaners $2.68 3
10 9-100-1005
Polaris 9-100-1005 Frame, Warranty Only $90.99 1
12 9-100-1139
Polaris 9-100-1139 Axle Block Kit (front and rear) for Vac-Sweep 380 and 360 Cleaners $29.99 1
15 9-100-1007
Polaris 9-100-1007 Transfer Pulley Drive Shaft Assembly for 360 and 380 Vac-Sweep Cleaners $28.99 1
16 9-100-5115
Polaris 9-100-5115 Screw, 8-32 x 3/4 in SS Pan Head $4.00 4
18 9-100-1132
Polaris 9-100-1132 Drive Train Gear Kit with Turbine Bearing for Vac-Sweep 360 and 380 Pool Cleaners $23.00 1
19 9-100-1103
Polaris 9-100-1103 Turbine Wheel with Bearing for Vac-Sweep 360 and 380 Pool Cleaners $16.00 1
21 C131
Polaris C131 Thrust Jet Kit for 380, 360, 280 and 180 Vac-Sweep Cleaners $10.99 1
24 B16
Polaris B16 Sweep Hose Attach Clamp, Black, for 3900 Sport, 380, 360 and 280 Cleaners $4.99 1
27 9-100-7009
Polaris 9-100-7009 Jet Retainer, 2 Pack, for Vac-Sweep 380 and 360 Cleaners $3.00 2
28 9-100-7010
Polaris 9-100-7010 Water Management System (WMS) for Vac-Sweep 360 and 380 Cleaners $45.99 1
30 9-100-3105
Polaris 9-100-3105 Vac-Sweep Sweep Foam Scrubber for 380 $3.00 1
30 R0522400
Polaris R0522400 Sweep Hose Scrubber, 3 Pack, for Three-Wheel Pressure Cleaners $10.99 1
31 9-100-5132
Polaris 9-100-5132 Feed Pipe Assembly O-Ring for Vac-Sweep 360 and 380 Pool Cleaners $1.00 1
34 A21
Polaris A21 Float, Head, Black, for 280, 360 and 380 Vac-Sweep Cleaners $14.99 1
35 39-500
Polaris 39-500 Sweep Hose Complete for 3900 Series Pool Cleaners $64.00 1
40 10-112-00
Polaris 10-112-00 Universal Wall Fitting Restrictor Disks, Red and Blue, for 180, 280, 380 and 3900 Sport Cleaners $5.99 1
41 6-550-00
Polaris 6-550-00 Universal Wall Fitting, Black, for 380, 360 and 280 Cleaners $5.99 1
42 9-100-9005
Polaris 9-100-9005 Vac-Sweep UWF Connector Assembly, Black $40.99 1
43 10-108-00
Polaris 10-108-00 Universal Wall Fitting Restrictor Kit for 180, 280, 380 and 3900 Sport Pressure Cleaners $13.99 1
44 6-505-00
Polaris 6-505-00 Universal Wall Fitting/Quick Disconnect O-Ring for 180, 280, 380 and 480 Pool Cleaners $1.00 1
45 9-100-9006
Polaris 9-100-9006 Pressure Relief Valve Assembly, Black, for 3900 Sport Cleaners $13.49 1
49 48-085
Polaris 48-085 In-Line Filter Assembly, Black, for 3900 Sport and TR35P Cleaners $76.99 1
50 48-222
Polaris 48-222 In-Line Filter Screen for 280, 380, 480 and 3900 Sport Cleaners $16.99 1
55 G62
Polaris G62 Back-Up Valve Kit, Black, for 280, 380, TR35P and TR36P Pressure Cleaners $120.00 1
56 G64
Polaris G64 Case Kit for G62 Back-Up Valve, Black $35.99 1
57 G67
Polaris G67 Back-Up Valve Collar, Black, for 180, 280, 360 and 380 Cleaners $13.99 1
61 TSP10P
Polaris TSP10P Tail Sweep Pro, 18 Pack Bulk, for Three-Wheel Pressure Cleaners $45.99 1
