Polaris TR36P Parts Diagram

51
Polaris G67 Back-Up Valve Collar, Black, for 180, 280, 360 and 380 Cleaners
42
Polaris 6-505-00 Universal Wall Fitting/Quick Disconnect O-Ring for 180, 280, 380 and 480 Pool Cleaners
41
Polaris 6-504-00 Turtle In-Line Filter Screen
40
Polaris 6-550-00 Universal Wall Fitting, Black, for 380, 360 and 280 Cleaners
34
Polaris A21 Float, Head, Black, for 280, 360 and 380 Vac-Sweep Cleaners
31
Polaris 9-100-5132 Feed Pipe Assembly O-Ring for Vac-Sweep 360 and 380 Pool Cleaners
30
Polaris 9-100-3105 Vac-Sweep Sweep Foam Scrubber for 380
27
Polaris 9-100-7009 Jet Retainer, 2 Pack, for Vac-Sweep 380 and 360 Cleaners
24
Polaris B16 Sweep Hose Attach Clamp, Black, for 3900 Sport, 380, 360 and 280 Cleaners
21
Polaris C131 Thrust Jet Kit for 380, 360, 280 and 180 Vac-Sweep Cleaners
19
Polaris 9-100-1103 Turbine Wheel with Bearing for Vac-Sweep 360 and 380 Pool Cleaners
18
Polaris 9-100-1132 Drive Train Gear Kit with Turbine Bearing for Vac-Sweep 360 and 380 Pool Cleaners
16
Polaris 9-100-5115 Screw, 8-32 x 3/4 in SS Pan Head
15
Polaris 9-100-1007 Transfer Pulley Drive Shaft Assembly for 360 and 380 Vac-Sweep Cleaners
12
Polaris 9-100-1139 Axle Block Kit (front and rear) for Vac-Sweep 380 and 360 Cleaners
10
Polaris 9-100-1005 Frame, Warranty Only
9
Polaris 9-100-7011 Bearing Shield for 380 and 360 Pressure Cleaners
8
Polaris 9-100-7011 Bearing Shield for 380 and 360 Pressure Cleaners
7
Polaris R0615700 Double-Side Wheel, Silver, for TR35P and TR36P Pressure Cleaners
6
Polaris C11 Vac-Sweep MaxTrax Tire, Black
5
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners
4
Polaris 9-100-5107 E-Clip, Stainless Steel, for Vac-Sweep 340, 360 and 380 Pool Cleaners
1
Polaris 9-100-1022 Vac-Sweep Zippered All-Purpose Bag, Black, for 380, 360, TR35P and TR36P Cleaners

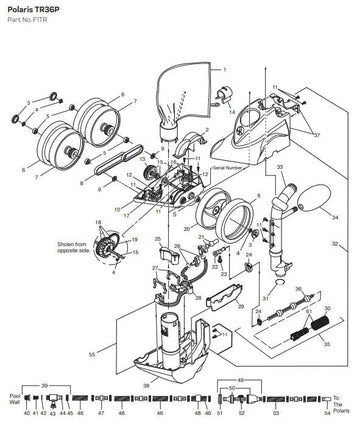

Check the parts blowup above for the most common replacement part for the Polaris TR36P Pool Cleaner.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
1 9-100-1022
Polaris 9-100-1022 Vac-Sweep Zippered All-Purpose Bag, Black, for 380, 360, TR35P and TR36P Cleaners $42.00 1
4 9-100-5107
Polaris 9-100-5107 E-Clip, Stainless Steel, for Vac-Sweep 340, 360 and 380 Pool Cleaners $2.00 10
5 9-100-1108
Polaris 9-100-1108 Ball Bearing for 340, 360, 380 and 3900 Sport Pressure Cleaners $11.00 8
6 C11
Polaris C11 Vac-Sweep MaxTrax Tire, Black $15.99 1
7 R0615700
Polaris R0615700 Double-Side Wheel, Silver, for TR35P and TR36P Pressure Cleaners $17.00 1
8 9-100-1017
Polaris 9-100-1017 Belt Kit, Small and Large, for Vac-Sweep 360, 380 Pressure Cleaners $24.00 1
9 9-100-7011
Polaris 9-100-7011 Bearing Shield for 380 and 360 Pressure Cleaners $2.68 3
10 9-100-1005
Polaris 9-100-1005 Frame, Warranty Only $90.99 1
12 9-100-1139
Polaris 9-100-1139 Axle Block Kit (front and rear) for Vac-Sweep 380 and 360 Cleaners $29.99 1
15 9-100-1007
Polaris 9-100-1007 Transfer Pulley Drive Shaft Assembly for 360 and 380 Vac-Sweep Cleaners $28.99 1
16 9-100-5115
Polaris 9-100-5115 Screw, 8-32 x 3/4 in SS Pan Head $4.00 4
18 9-100-1132
Polaris 9-100-1132 Drive Train Gear Kit with Turbine Bearing for Vac-Sweep 360 and 380 Pool Cleaners $23.00 1
19 9-100-1103
Polaris 9-100-1103 Turbine Wheel with Bearing for Vac-Sweep 360 and 380 Pool Cleaners $16.00 1
21 C131
Polaris C131 Thrust Jet Kit for 380, 360, 280 and 180 Vac-Sweep Cleaners $10.99 1
24 B16
Polaris B16 Sweep Hose Attach Clamp, Black, for 3900 Sport, 380, 360 and 280 Cleaners $4.99 1
27 9-100-7009
Polaris 9-100-7009 Jet Retainer, 2 Pack, for Vac-Sweep 380 and 360 Cleaners $3.00 2
30 9-100-3105
Polaris 9-100-3105 Vac-Sweep Sweep Foam Scrubber for 380 $3.00 1
31 9-100-5132
Polaris 9-100-5132 Feed Pipe Assembly O-Ring for Vac-Sweep 360 and 380 Pool Cleaners $1.00 1
34 A21
Polaris A21 Float, Head, Black, for 280, 360 and 380 Vac-Sweep Cleaners $14.99 1
40 6-550-00
Polaris 6-550-00 Universal Wall Fitting, Black, for 380, 360 and 280 Cleaners $5.99 1
41 6-504-00
Polaris 6-504-00 Turtle In-Line Filter Screen $12.99 1
42 6-505-00
Polaris 6-505-00 Universal Wall Fitting/Quick Disconnect O-Ring for 180, 280, 380 and 480 Pool Cleaners $1.00 1
51 G67
Polaris G67 Back-Up Valve Collar, Black, for 180, 280, 360 and 380 Cleaners $13.99 1
61 TSP10P
Polaris TSP10P Tail Sweep Pro, 18 Pack Bulk, for Three-Wheel Pressure Cleaners $45.99 1
