Polaris Vac-Sweep 280 Parts Diagram

Polaris Vac-Sweep 280 Parts Diagram

Check the parts blowup above for the most common replacement part for the Polaris 180 Pool Cleaner.  The parts list below shows the most common part replacement along with any substitutions that could be used.



Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions

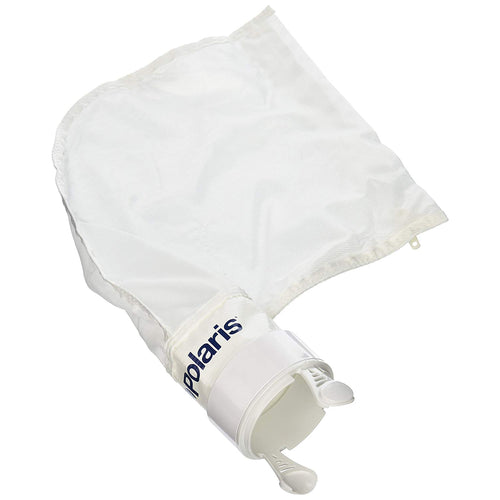

1 K13
Polaris K13 Vac-Sweep All Purpose Zipper Pool Cleaner Replacement Bag for 280 $59.99 1
1 C40
Polaris C40 Screw, 10-32 x 3/8'' Stainless Steel Pan Head 10pack $2.99 1

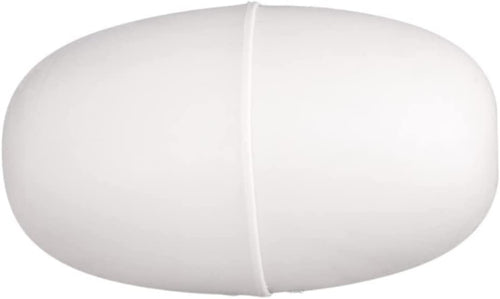

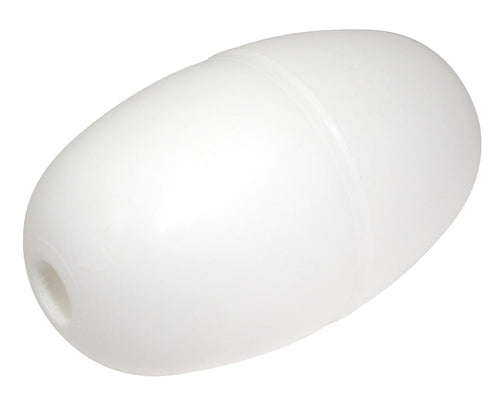

4 A20
Polaris A20 Float, Head $7.99 1
4 25563-120-000
CMP 25563-120-000 Pool Cleaner White Generic Hose Float $8.49 1

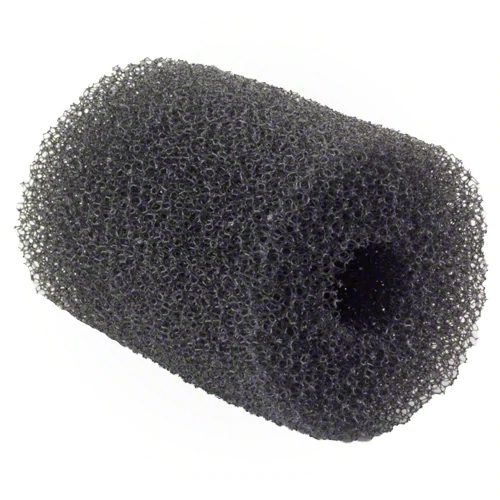

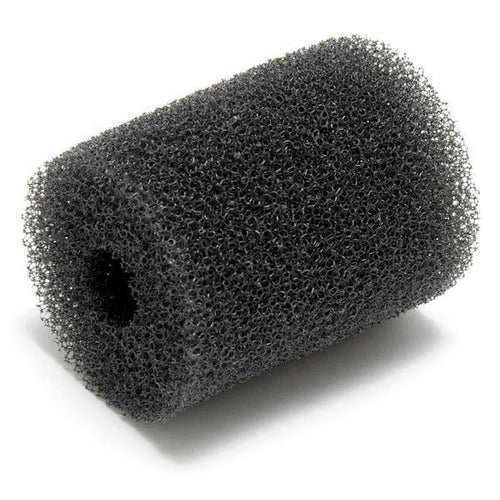

5 9-100-3105
Polaris 9-100-3105 Sweep Hose Scrubber $3.99 1
5 R0522400
Polaris R0522400 Sweep Hose Scrubber for Cleaners 3 pack $8.99 1
6 B25
Polaris B25 Orifice Tip with Orifice Tip Guard, for Polaris 380/280/180 $3.99 1

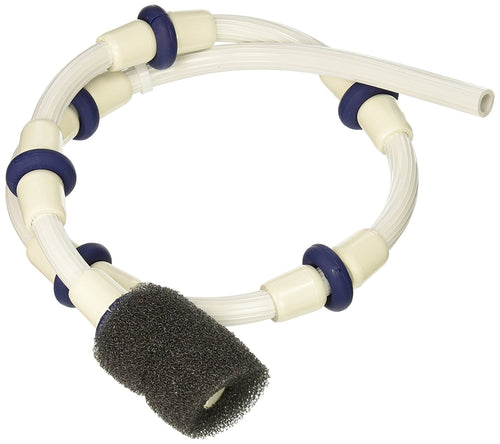

7 B5
Polaris B5 Sweep Hose Complete $39.99 1

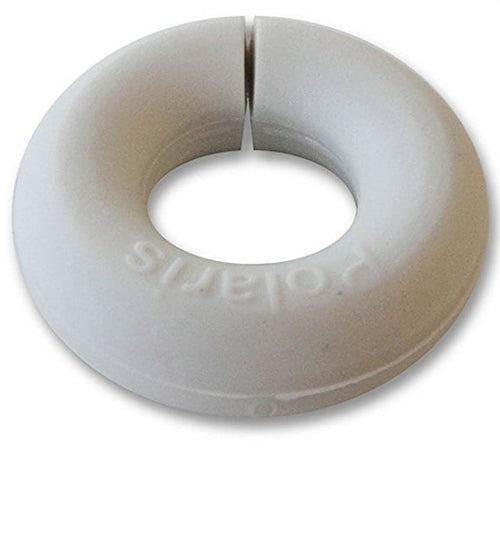

8 B10
Polaris B10 Wear Rings, Pack of 5 $12.99 8

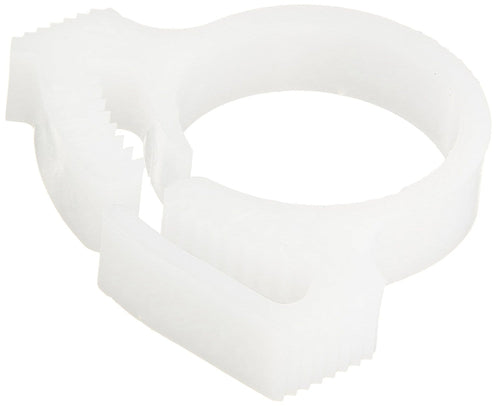

9 B15
Polaris B15 Sweep Hose Attach Clamp $2.99 1
10 B20
Polaris B20 Adjustment Screw for Sweep Hose $3.99 1

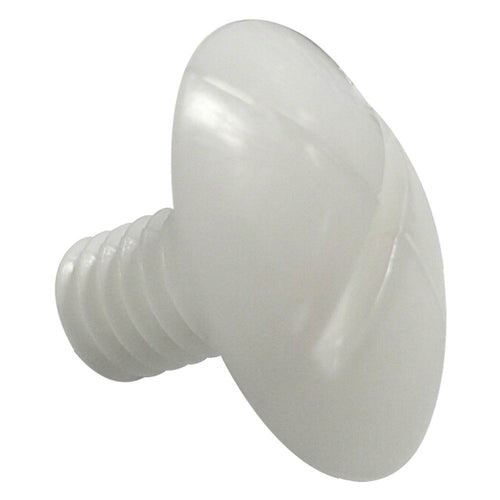

18 C55
Polaris C55 Plastic Wheel Screw $1.99 1
20 C10
Polaris C10 Tire, Maxtrax, 380/360/280/180 $13.99 3

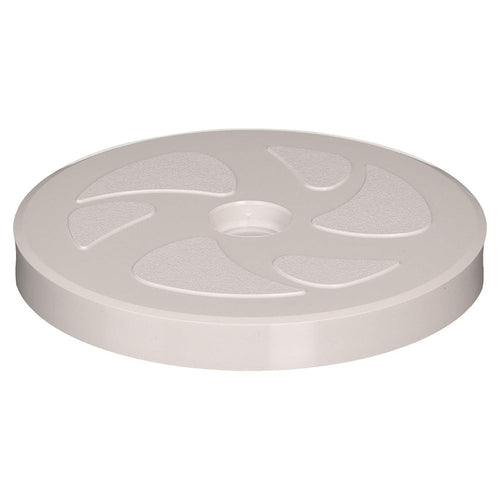

21 C6
Polaris C6 Large Wheel without Bearing Replacement $12.99 3

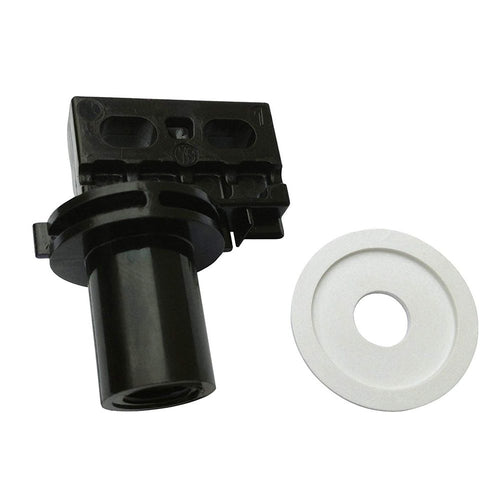

22 C65
Polaris C65 Rear Wheel Large Axle Replacement $5.99 1

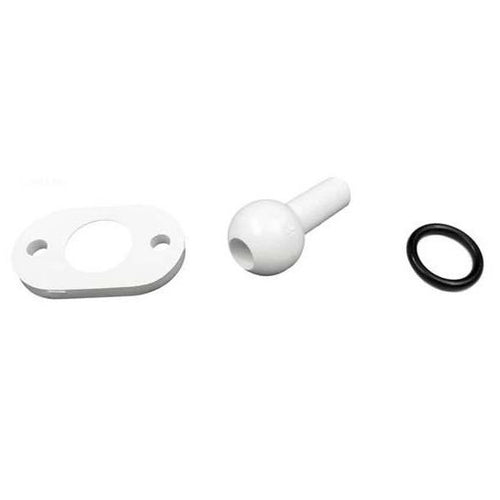

23 C131
Polaris C131 Thrust Jet Kit $6.99 1

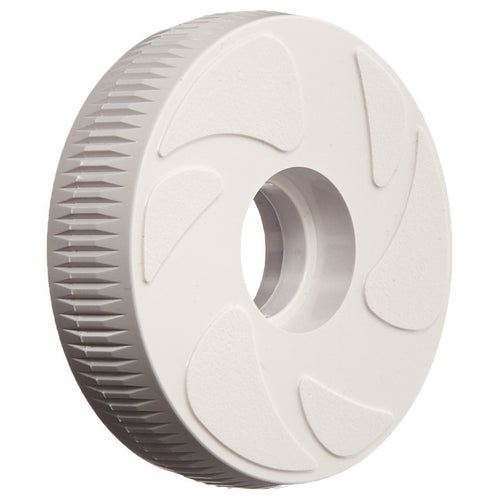

24 C16
Polaris C16 Idler Wheel, Single-Side $9.99 1

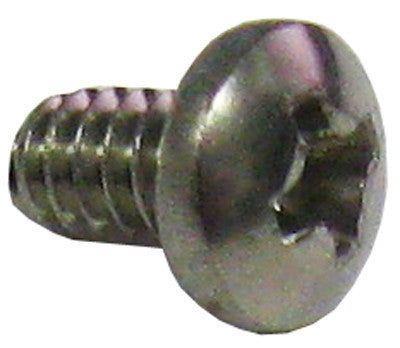

25 C30
Polaris C30 5 Pack of Screws 4-40 x 3/16" SS Pan Head for Polaris Cleaners $2.99 1

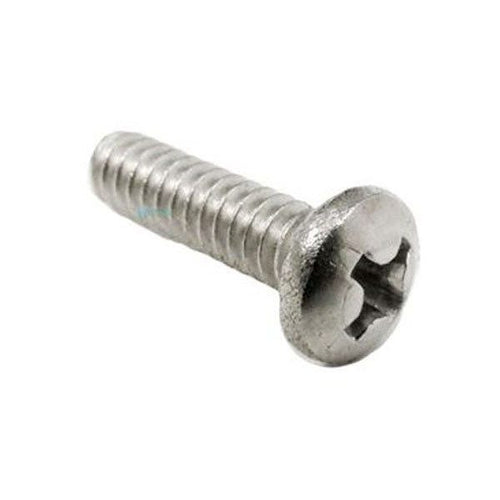

26 C32
Polaris C32 6-32 x 0.5" Screws 5-Pack $2.99 1

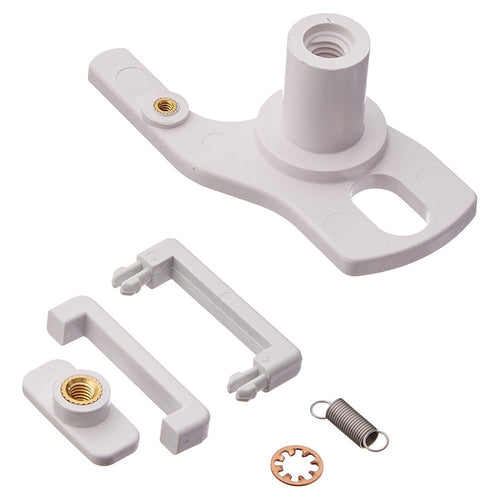

28 C36
Polaris C36 Swing Axle Kit for 280/180 $17.99 1

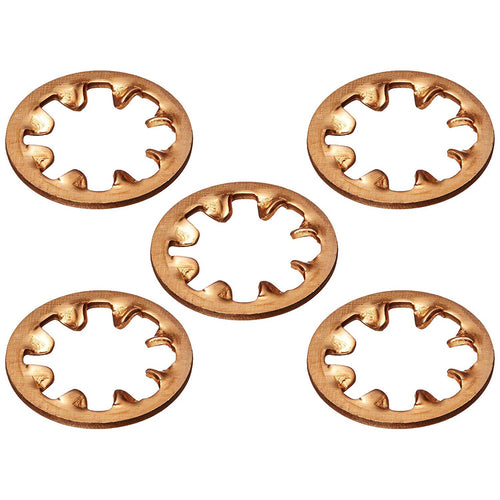

15 C45
Polaris C45 Lock Washer For C36 280/180 - 5 pack $3.99 1
32 C80
Polaris C80 Ball Bearings, Turbine for Polaris 280/180 $19.99 2
33 C83
Polaris C83 Turbine Shaft Tubes $3.99 1
34 9-100-7170
Polaris 9-100-7170 Hose Clamp for Polaris Cleaners 6/pk $4.49 2

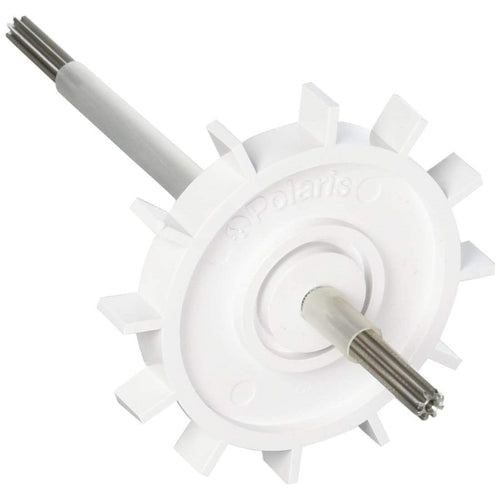

36 C86
Polaris C86 Drive Shaft Assembly for Polaris 280/180 $39.99 1
39 9-100-1018
Polaris 9-100-1018 Bag Clip 380/280 $2.99 1

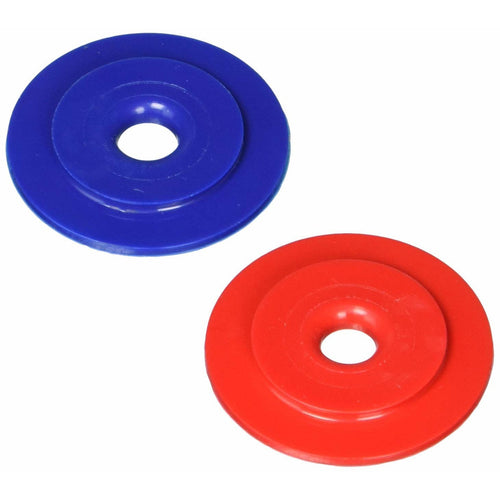

40 10-112-00
Polaris 10-112-00 UWF Restrictor Disk Kit 180/280/380 $4.99 1

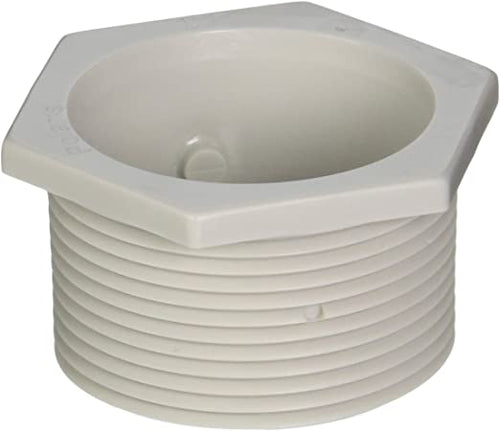

41 6-500-00
Polaris 6-500-00 Universal Wall Fitting $4.99 1

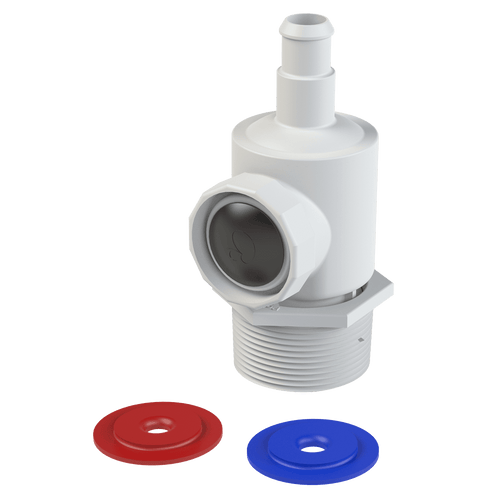

40 9-100-9001
Polaris 9-100-9001 UWF Connector Assembly $35.99 1

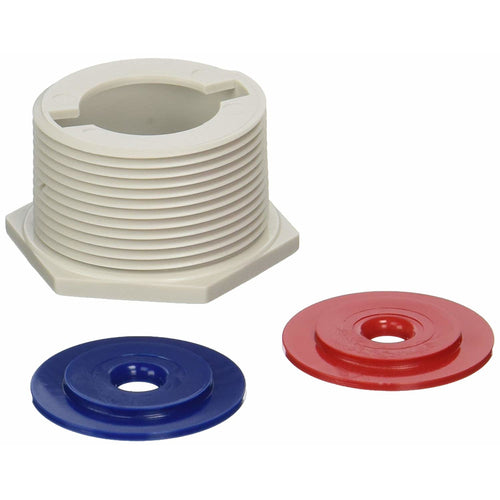

43 10-108-00
Polaris 10-108-00 UWF Restrictor Kit PVS $9.99 1

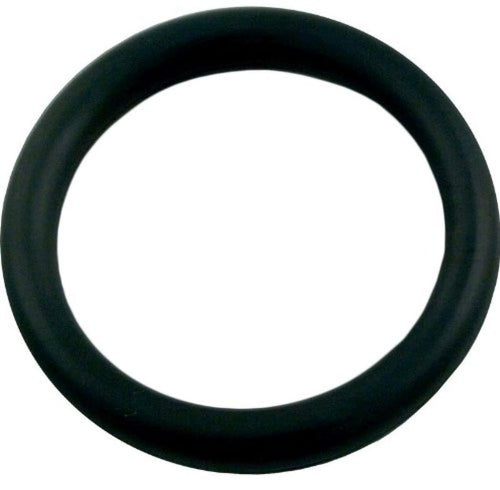

44 6-505-00
Polaris 6-505-00 Universal Wall Fitting and Quick Disconnect O-Ring Replacement $3.99 1

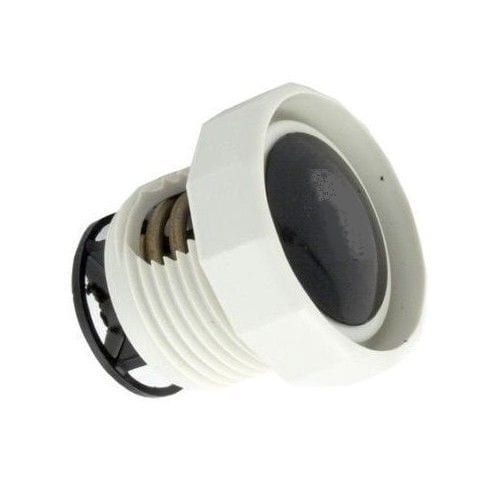

45 9-100-9002
Polaris 9-100-9002 Pressure Relief Valve $11.99 1

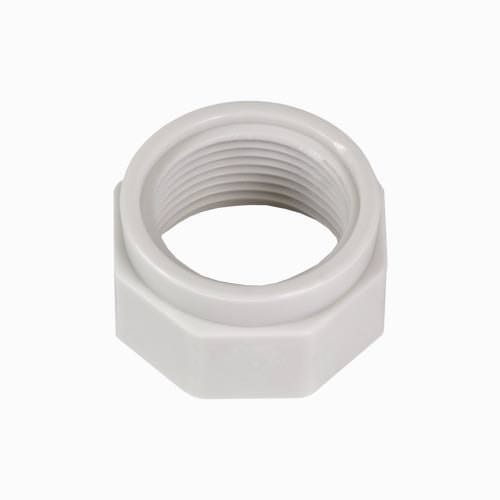

47 D15
Polaris D15 Nut, Feed Hose $3.99 1

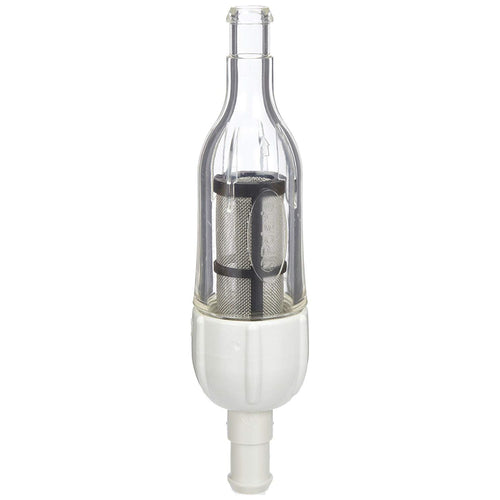

49 48-080
Polaris 48-080 In-line Filter Assembly $69.99 1

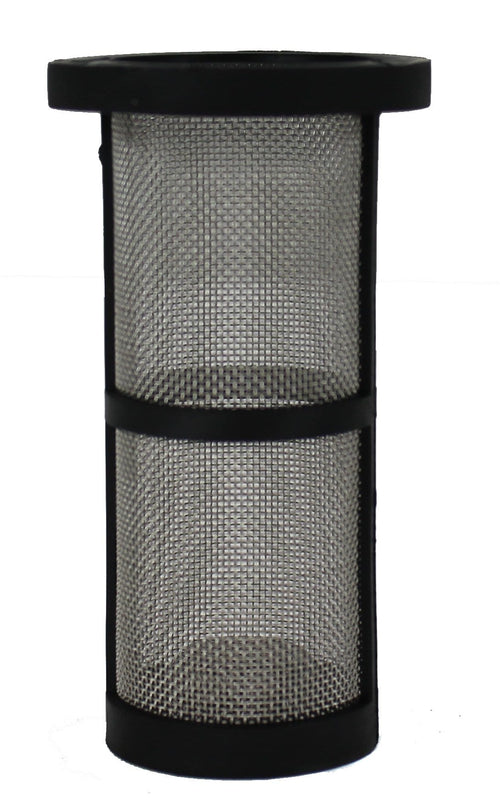

50 48-222
Polaris 48-222 In-Line Filter Screen $10.99 1
51 D10
Polaris D10 Feed Hose Float $8.99 9

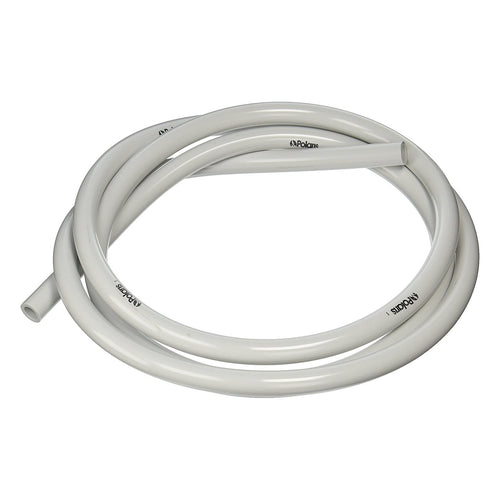

52 D45
Polaris D45 Feed Hose Section (10 feet, White) $34.99 2

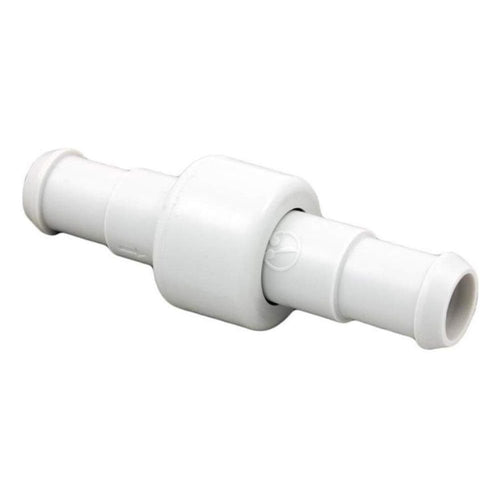

53 D20
Polaris D20 Ball Bearing Swivel for Pool Cleaners $12.66 2

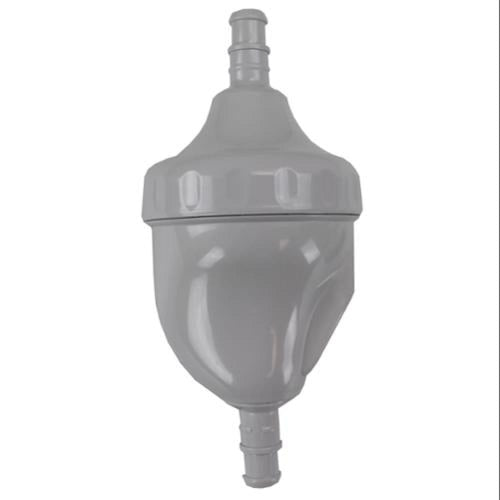

55 G52
Polaris G52 Back-up Valve Kit $84.99 1

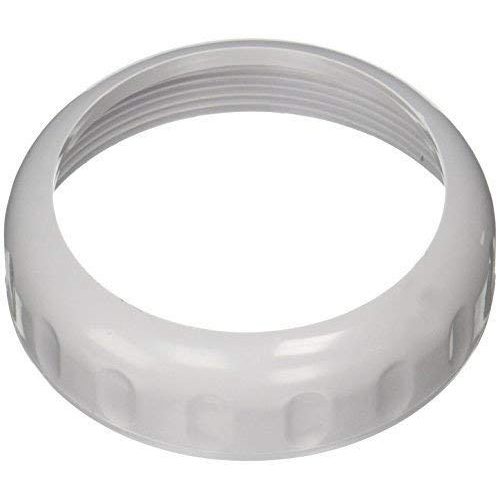

58 G57
Polaris G57 Back Up Valve Collar Replacement $11.99 1

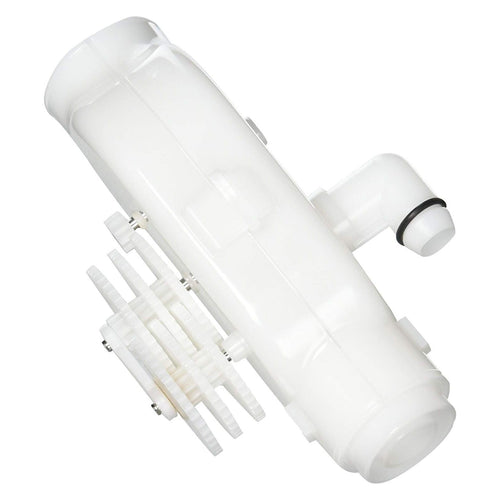

59 G53
Polaris G53 Mechanism Replacement $79.99 1
