Pentair Quad D.E. Filters

Pentair Quad D.E. Filters

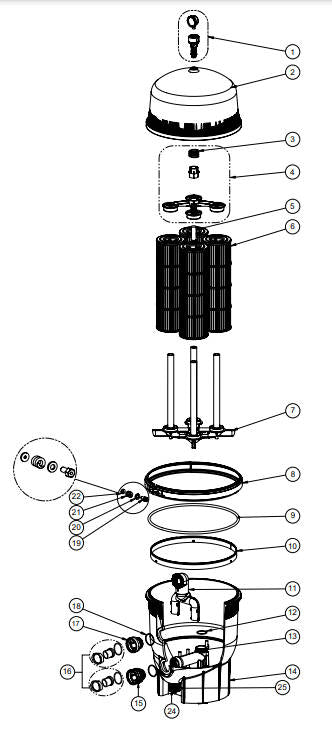

Check the parts blowup above for the most common replacement part for the Pentair Quad D.E. Filters.  The parts list below shows the most common part replacement along with any substitutions that could be used.
Diagram # Sku Image Title Price Quantity for Product # to Add to Cart Actions
11 196024S
Pentair 196024S Quad DE Filter Diverter Assembly Retrofit Kit $116.19 1
1 25357-982-000
CMP 25357-982-000 Black Air Relief Valve & Gauge, Compare to Pentair Kit (98209800) $28.12 1
9 39010200Z
Pentair 39010200Z C&C Tank O-ring $67.22 1
10 195339
Pentair 195339 Stainless Steel Backup Ring Replacement Pool/Spa D.E. and Cartridge Filter Backup Ring Replacement $83.40 1
24 190030Z
Pentair 190030Z Drain Cap Plug For Clean & Clear, FNS Plus, Quad DE Filters $50.36 1
13 170036
Pentair 170036 Pipe Outlet Assembly For Clean & Clear, Quad DE, FNS Plus $107.51 1
16 178711
Pentair 178711 Quad DE Filter Adapter Kit $129.99 1
7 170059
Pentair 170059 Quad DE Bottom Manifold $206.29 1
6 178655
Pentair 178655 Cartridge Replacement Quad DE 80 Sold as Each $139.99 4

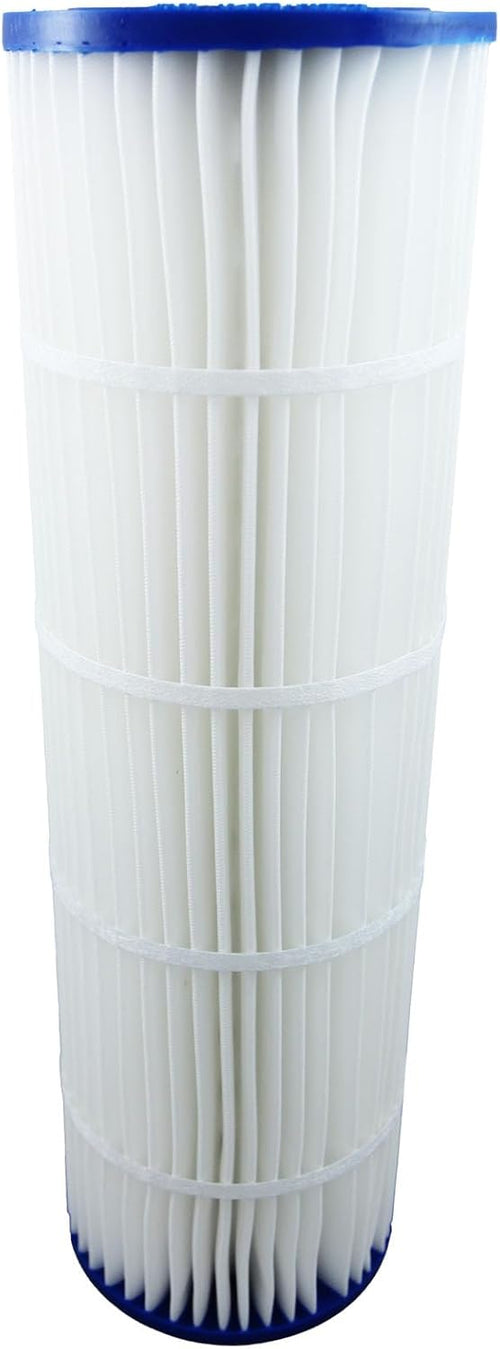

6 178654
Pentair 178654 Quad 60 15sf Replacement Cartridge $94.90 4
1 98209800
Pentair 98209800 High Flow Manual Relief Valve Replacement Pool and Spa Filter $45.28 1
19 194997
Pentair 194997 Replacement Swimming Pool Spa FNS Quad Filter Tank Machined Nut $19.54 1
17 194801
Pentair 194801 2-Inch Bulkhead Replacement Pool and Spa Filter $102.11 1
8 190003
Pentair 190003 Tension Control Clamp Kit Replacement Pool and Spa Filter $329.99 1
5 170028
Pentair 170028 Air Bleed Tube Assembly C&C+ 420 Replacement $65.12 1
4 170026
Pentair 170026 Top Manifold Assembly Replacement Pool Cartridge and D.E. Filter $85.15 1
5 170029
Pentair 170029 320 C&C Air Bleed Tube Assembly $56.64 1
6 178583
Pentair 178583 Air Bleed Tube Assembly C&C+ 520SF $62.44 1
15 178575
Pentair Quad DE Bottom Bulkhead Fitting $39.07 1
3 178616
Pentair 178616 C&C/Quad DE Compression Spring $8.46 1
18 86006900
Pentair 86006900 C.C./FNS Bulkhead O-Ring $9.14 1
12 354571
Pentair 354571 ABG Quick Connect O-Ring $5.20 1
20 195611
Pentair 195611 Large Diameter Washer Replacement FNS and Quad DE Filter $11.39 1
21 195612
Pentair 195612 Spring Replacement FNS and Quad Pool/Spa D.E. Filter $31.72 1
22 195610
Pentair 195610 Small Diameter Washer Replacement Pool Cartridge Filter $10.14 1
