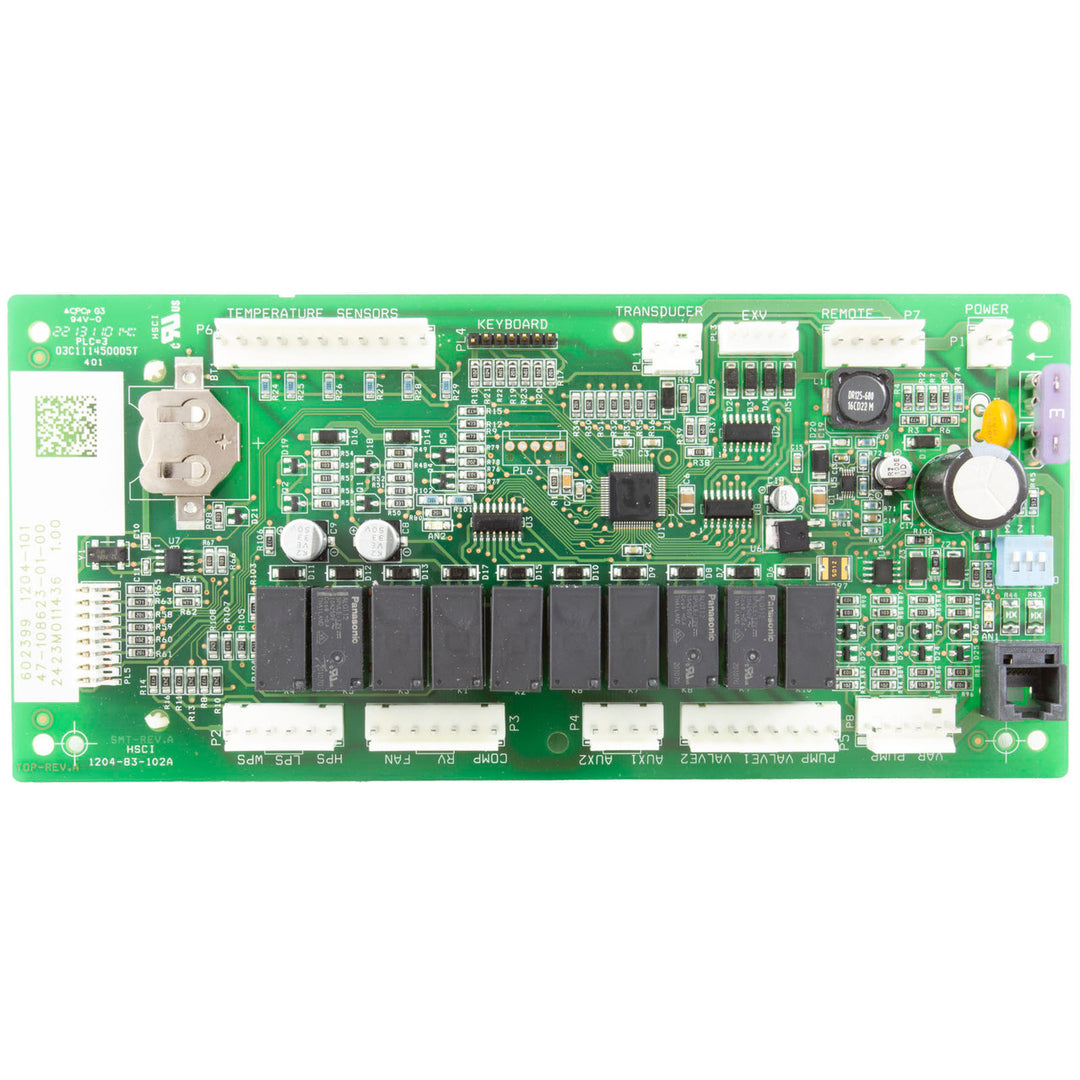

Raypak 100-10000347 Heat Pump Control Board With LCD Display for 2450-8450, Replaces H000302

Raypak 100-10000347 Heat Pump Control Board With LCD Display

Part # 100-10000347 | Genuine Raypak replacement part | For 2450, 3450, 4450, 5450, 6450 and 8450 heat pumps

This is the digital control board for Raypak heat pump pool and spa heaters in the 2450 to 8450 range. The LCD display is built into the board, so it takes the place of the earlier control board H000302 and of the separate LCD display H000336, which Raypak has made obsolete. Raypak lists it as item 6-J in the control box of these heat pumps.

✅ Fits these Raypak models:

• Raypak 2450, 3450 and 4450 heat pumps
• Raypak 5450, 6450 and 8450 heat pumps, including the 6450PD, 6450HC and 8450HC versions covered by the same parts table

🔧 Details:

• Control board with the LCD display built in
• Replaces control board H000302
• Also takes over from LCD display H000336, which Raypak lists as obsolete
• Raypak parts list item 6-J, control box
• Raypak heads the 5450 to 8450 parts table Raypak / Rheem / Ruud

📌 Good to know:

• On heat pumps built with board H000302 and a separate LCD display, Raypak's current parts list shows only this board, which carries the display.
• Control board replacement is electrical work for a qualified heat pump technician.

Check your heater's model and serial number before ordering.
