Raypak TWPH-4550EHT08 Crosswind V 4550 Pool & Spa Heat Pump, Heat Only, 85,000 BTU, 5.8 COP, 208-230 V, Rheem TWPH-4550EHT10

Raypak Crosswind V 4550 Pool & Spa Heat Pump, 85,000 BTU, 5.8 COP

Model TWPH-4550EHT08 | 85,000 BTU at 80/80/80 | 5.8 COP | Heat only | 208-230 V single phase | Raymote Wi-Fi control

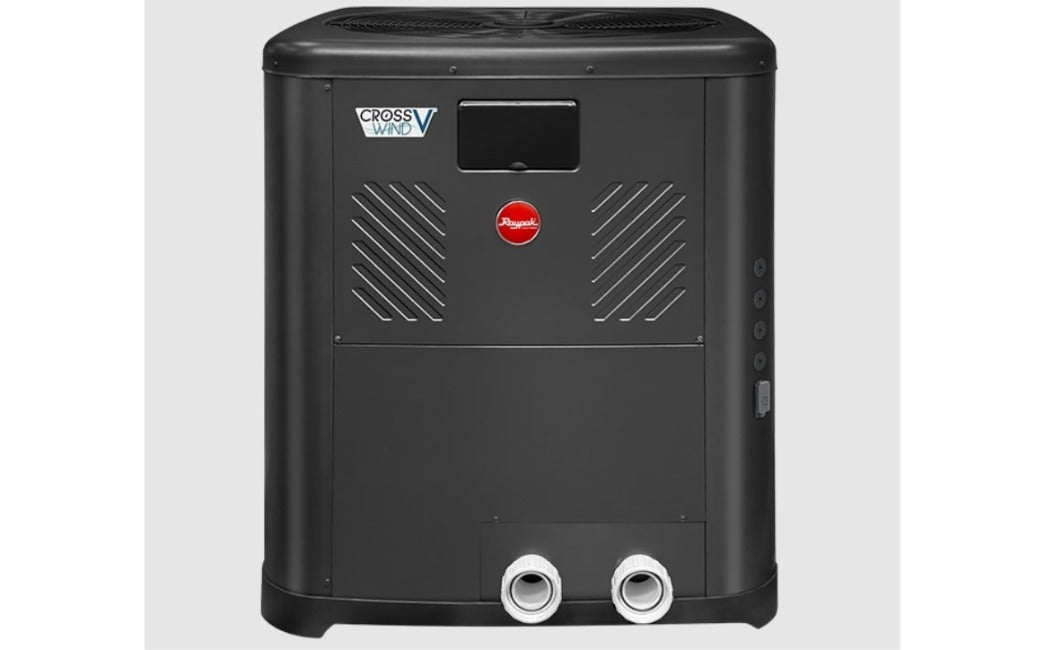

The Crosswind V 4550 is the smallest size in Raypak's Crosswind V line of vertical-discharge heat pumps for residential pools and spas, and this is the Standard heat-only model. It takes heat from the outside air and moves it into the pool water through a titanium tube heat exchanger, and is rated at 85,000 BTU per hour with a 5.8 COP at 80 degrees F air, 80% humidity and 80 degrees F water. Its control connects to Wi-Fi for the Raymote phone app and can also run valve actuators, a pump and auxiliary pool equipment.

✅ Made for:

• Residential pools and spas on 2 in. plumbing with a 208-230 V, single-phase supply.
• Outdoor installation only. Raypak does not certify the Crosswind V for indoor use; it cannot go in a shed or garage or under a deck or porch.
• Raypak's minimum recommended water flow is 20 GPM. Above 40 GPM the 4550 needs an external bypass; Raypak's bypass assembly kit 100-10000816 is sold separately for Standard models.
• Heating only. Pool cooling (Cool Mode) is on Raypak's Deluxe heat/cool models, TWPH-6550EHC08 and TWPH-8550EHC08.

🔧 Details:

• Heating output and COP, tested to AHRI 1160, with 80 degrees F water: 85,000 BTU/h and 5.8 at 80 degrees F air and 80% humidity; 80,000 and 5.5 at 80 degrees F air and 63% humidity; 56,000 and 4.0 at 50 degrees F air and 63% humidity.
• Electrical: 208-230 VAC, single phase, 60 Hz. Input 4.3 kW. Minimum circuit ampacity 38 A. Breaker 50 A minimum, 60 A maximum; Raypak recommends 50 A.
• Refrigerant: R-410A.
• Heat exchanger: titanium tube.
• Water connections: 2 in. PVC unions, reached through the front panel. Two union halves come with the heater.
• Control: digital display with pool, spa and timed spa modes, and Wi-Fi for the Raymote app. Pool setpoint limit adjustable up to 95 degrees F, spa up to 104 degrees F.
• Built-in automation: outputs for two valve actuators, a single-speed or variable-speed pump and auxiliary on/off equipment such as lights or water features. The control can also call a gas or electric heater as auxiliary heat.
• Cabinet: powder-coated metal, about 33.8 in. wide x 33.8 in. deep x 37.8 in. high, with a four-blade fan that discharges upward.
• Weight 260 lb; 278 lb shipping. Shipping carton 38.75 x 38.75 x 42.5 in.
• In the carton: four hurricane tie-down brackets with 16 screws, two union halves, the optional control harnesses, the manual and the warranty.
• Raypak limited warranty: 2 years labor, 7 years parts and 10 years on the titanium tube of the heat exchanger, when installed by a licensed service provider.
• UPC 662021604584.
• Rheem cross-reference: Rheem item TWPH-4550EHT10 is the same heat pump sold under the Rheem label.
• Ruud cross-reference: Ruud item TWPH-4550EHT11 is the same heat pump sold under the Ruud label.

📌 Good to know:

• A heat pump puts out less heat per hour than a gas heater and may run many hours a day to hold temperature. Raypak recommends covering the pool when it is not in use.
• Leave 5 ft of open space above the unit and 1 ft on each side for service, and keep it at least 3 ft from any gas or other fuel-burning heater.
• Chlorinators and chemical feeders go after the heater, with a check valve or Hartford loop between them.
• If the heater sits below the pool water line, the water pressure switch may need adjusting, and Raypak's manual calls for an external water flow switch (kit H000166, not included).
• Electrical connection is for a licensed electrician, and any work on the sealed refrigerant circuit is for a qualified technician.

Gas, venting and electrical work must be done by a qualified installer and meet local codes.
