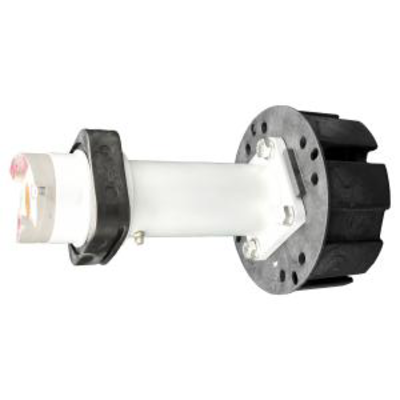

Coverstar A2883 Repair Kit Eclipse Solid Cone Motor End Recessed Left
Coverstar A2883 Repair Kit Eclipse Solid Cone Motor End Recessed Left

Coverstar A2883 Eclipse Tube Insert & Stainless Solid Cone Repair kit UG Left

A2883

Regular price$425.00
/
Shipping calculated at checkout.

Repair kit for replacing the solid cone and roll tube insert on the Eclipse cover mechanism, under guide left side, with the shifting gear, bushings, hardware and instructions in one kit.

Coverstar item A2883: Eclipse Tube Insert & Stainless Solid Cone Repair kit Under Guide (UG) Left. Catalog category: Mechanism Hardware.

Part details

Item number A2883
Manufacturer Coverstar
Manufacturer description Eclipse Tube Insert & Stainless Solid Cone Repair kit UG Left
Catalog category Mechanism Hardware
Model / system references Eclipse
Number of component parts 9

Also known as

Manufacturer name Coverstar
Terminology Under Track = Under Guide = UT = UG
Terminology End Cap = Roll-up Tube Insert = Roll Up Tube Insert

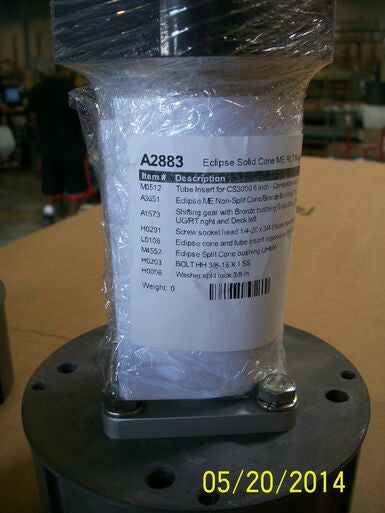

Components included

This item is supplied as an assembly or kit made up of the following parts.

Qty Item # Description
1 A1572 Shifting gear w/Bronze Bushing Single Dog Recessed Track (RT)/Under Guide (UG) Left & Deck Right - (Eclipse)
6 H9669 Screw - HHW Tek /Self Tapper #10 - 32 x 5/8" stainless steel (SS) (Type F)
4 H0291 Screw - Socket Head Screw 1/4" - #20 x 3/4"
4 H0006 Washer - Split Lock 3/8"
4 H0096 Bolt - 3/8" - #16 x 1 1/4" HHMSS
2 M4552 Eclipse Split Cone bushing UHMW
1 L0106 LIT: Instructions - Eclipse cone and tube insert replacement
1 A3651 Eclipse Motor End (ME) Solid Cone/Bronze Bushing After 2/14
1 M9682 6" Roll Tube Insert Composite for Standard or Extruded Tube w/o Screws (Ea)

Not sure this is the right part? Contact Premier Pool & Spa with your cover model and we will confirm fit before you order.

Free 90-day returns. No restocking fee, prepaid label. Opened the box to check fit? Still a full refund. Details
Find It in the store:1-U-04-H, 1-U-04-I
