Pentair 140212 TR60 ClearPro Sand Filter use 261050 Vlv; 50# Gravel(1); 275# Sand(5.5)

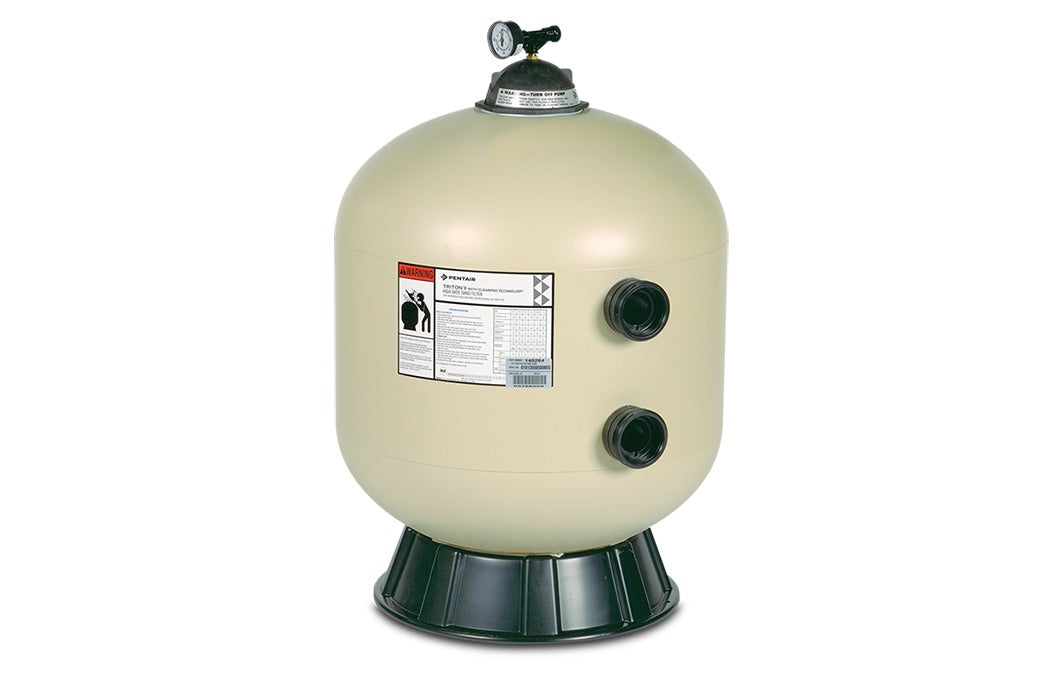

🌊 Pentair TR60 ClearPro Sand Filter – TradeGrade | 24" Tank | For Inground Pools

Model: TR60 | SKU: 140212 | Valve Required: 261050 (sold separately)
Media: 50 lbs Gravel, 275 lbs Sand (not included)

The Pentair TR60 ClearPro Sand Filter delivers exceptional water clarity and reliable filtration for inground pools and spas. Engineered for durability and ease of maintenance, this 24-inch fiberglass-reinforced tank features Pentair’s exclusive ClearPro technology, providing superior fine particle removal versus standard sand filters.

✅ Key Features:

• ClearPro Technology – Filters particles as small as 5 microns for sparkling clear water
• Large 24" Tank – Accommodates higher flow rates and longer cycles between cleanings
• High-Strength Fiberglass Tank – Corrosion resistant and built for years of service
• Easy Access Drain – Simplifies winterizing and maintenance
• Compatible with Pentair 261050 Multiport Valve (not included)
• Requires 50 lbs. of pea gravel and 275 lbs. of #20 silica sand (media not included)
• Top Mount, Side Mount, and Valve Options Available
• NSF Certified for pool safety and performance
• 2-Year Manufacturer Warranty (TradeGrade authorized purchase required)

Specifications:

• Filter Diameter: 24 inches
• Filtration Area: 3.1 sq ft
• Design Flow Rate: 63 GPM
• Required Valve: Pentair 261050 Multiport (sold separately)
• Media Capacity: 50 lbs pea gravel, 275 lbs #20 silica sand
• Maximum Working Pressure: 50 psi
• Application: Inground swimming pools and spas

Replacement Part Numbers: 140212 (TR60 Filter), 261050 (Valve)

Installation & Use:

1. Position filter on a level surface.
2. Add 50 lbs of pea gravel, then 275 lbs of #20 silica sand.
3. Connect to pool plumbing and install compatible valve.
4. Backwash before use to remove fine particles.
5. Follow full instructions in Pentair owner’s manual for setup and maintenance.

⚠️ Why Choose Pentair TR60 ClearPro?

• Superior water clarity for healthy, beautiful pools
• Low maintenance and reliable performance
• Trusted by pool professionals nationwide

🛠️ Need help sizing or installing your filter? Contact our pool experts for tailored advice and support.
