Raypak 005264F Drain Plug Return Header Kit - ASME Metal Exchangers

Raypak 005264F Rear Drain Plug & Cover for 206A, 266/266A, 336A, 399/406A, 207A, 266L/267A, 337A, 399L/407A, 408A, RP2100 R185A-R405A Pool Heaters

005264F

Regular price$35.99
/
Shipping calculated at checkout.

Raypak item 005264F: Rear Drain Plug & Cover. A replacement drain plug and cover for the return header of the metal heat exchanger on Raypak 206A-406A, 207A-407A, 408A and RP2100 pool heaters.

Product details

Part number 005264F
Manufacturer Raypak
Description (per Raypak) Rear Drain Plug & Cover (Heat Exchanger - Metal, call-out 17-HM); listed as Return Header Drain Plug & Cover in the Pro Series 408A parts list
Fits Raypak models 206A, 266/266A, 336A, 399/406A; 207A, 266L/267A, 337A, 399L/407A; 408A; RP2100 185A, 265A, 335A, 405A
UPC 840891003489
Raypak reference Raypak Residential Pool & Spa Product Catalog RP-P-902-6 rev D p. 23, 35; Raypak IPL 9100.56 Millivolt 206A-406A p. 6; Raypak IPL 241793 Digital 207A-407A p. 44; Raypak IPL 241452 Pro Series 268A, 408A p. 43; Raypak IPL 9100.554 RP2100 R185A-R405A p. 5

Send us your model and serial number and we will confirm fit before you order.

For heaters with ASME metal (cast iron or bronze) headers. Also listed for RP2100 R185B to R405B heaters built 1998 to 2004, and RP2100 R185, R265, R335 and R405 heaters built November 1993 to October 1998.

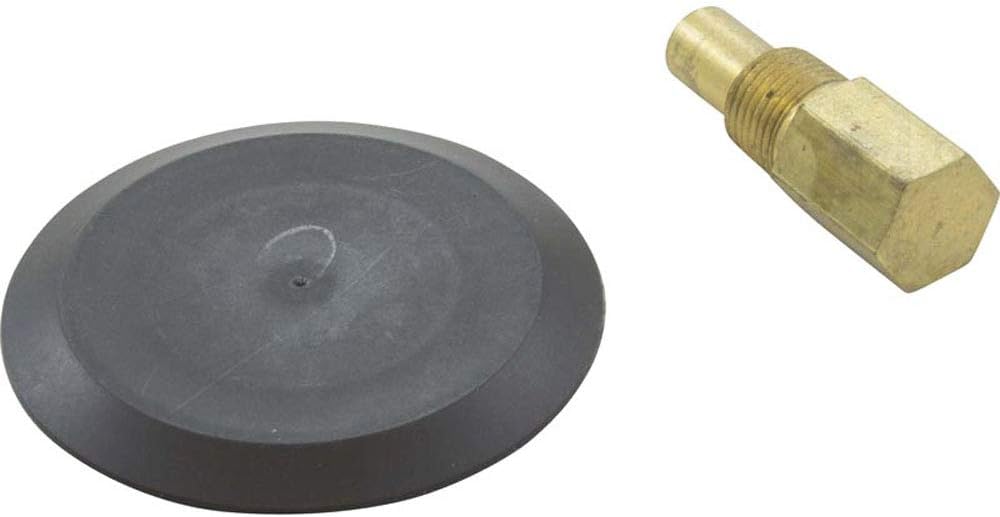

  • Kit contents: a brass drain plug and its cover. No O-ring is included.
  • Not for heaters with polymer headers, which use a different drain plug (Raypak 006721F, numbered 100-10008775 in the current manual).
  • This is not the drain valve. The 1/8 in. NPT drain valve on these headers is a separate part, Raypak 013793F.
  • Raypak's winterizing steps reach the return header drain through the heat exchanger inspection panel on the side opposite the water piping.

Check the header type before ordering.
