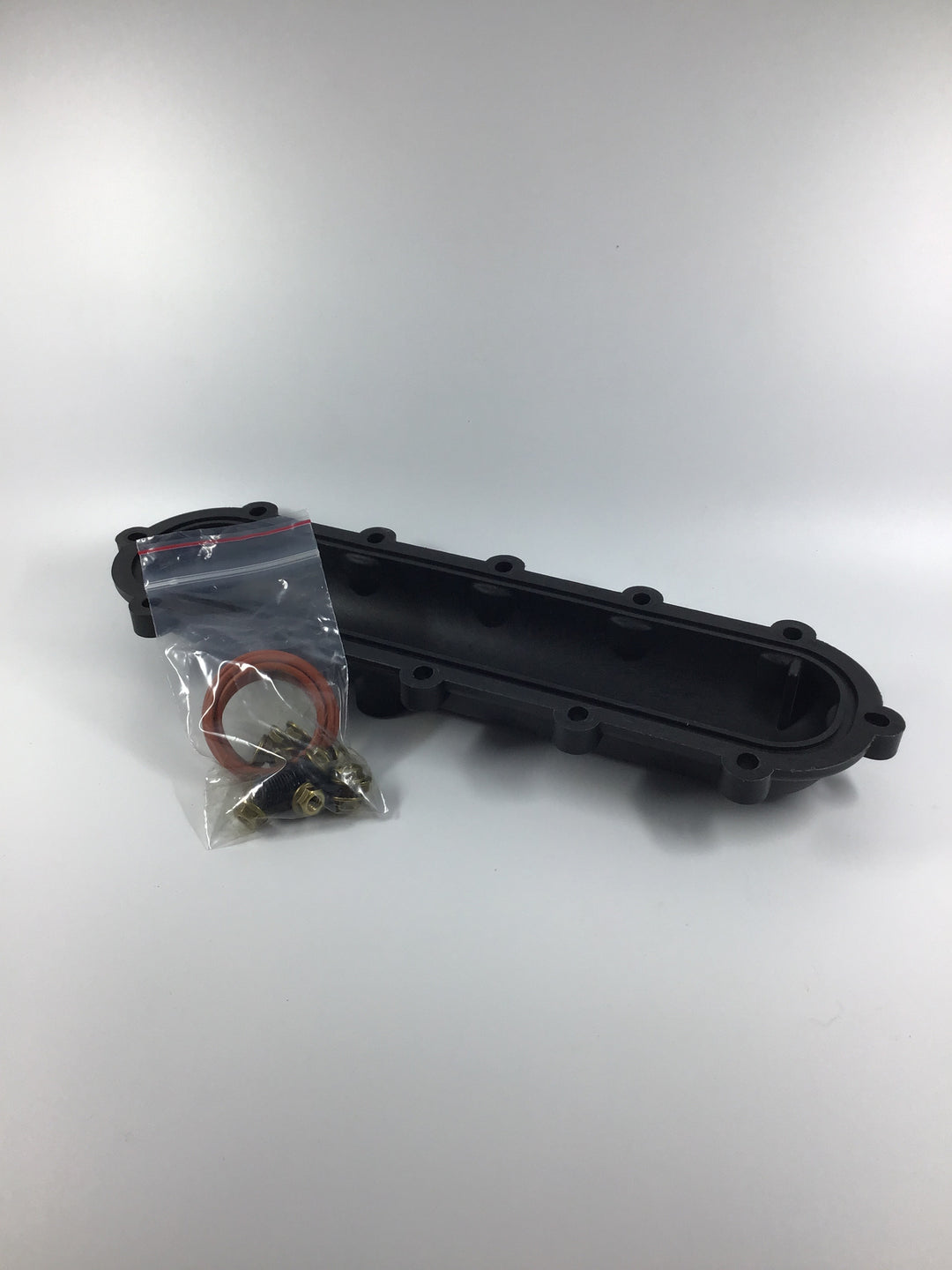

Raypak 015095F Polymer Return Header with Flange Nut Kit for 206A-406A and 207A-407A Heaters

Raypak 015095F Polymer Return Header with Flange Nut Kit

Part # 015095F | Genuine Raypak replacement part | For 206A to 406A and 207A to 407A heaters with polymer headers

This is the polymer return header for Raypak 206A to 406A and 207A to 407A gas pool and spa heaters. The return header closes the end of the heat exchanger on the side opposite the water connections, and it is where the heat exchanger drain plug sits. The kit includes the flange nuts.

✅ Fits these Raypak models:

• Raypak 207A, 267A, 337A and 407A digital Low NOx heaters with polymer headers
• Raypak 206A, 266A, 336A and 406A heaters with polymer headers, digital and millivolt, built from 10/2004 (also the 266 and 399 covered by the same parts list). Raypak's 2023 manual lists this header for them; the current manual shows a new number, 100-10008782
• Not for ASME heaters with bronze or cast-iron headers

🔧 Details:

• Raypak part number 015095F, listed as Return Header (Includes 6-HP)
• Includes the flange nut kit (item 6-HP, listed on its own as 008259F)
• Polymer header for the residential heat exchanger
• The drain plug is a separate part: 006721F in the parts lists that show this header

📌 Good to know:

• Raypak's manual places the return header behind the heat exchanger inspection panel on the side opposite the water piping.
• Replacing a header means opening the heat exchanger of a gas heater; have a qualified service technician do the work.

Check your heater's model and serial number before ordering.
