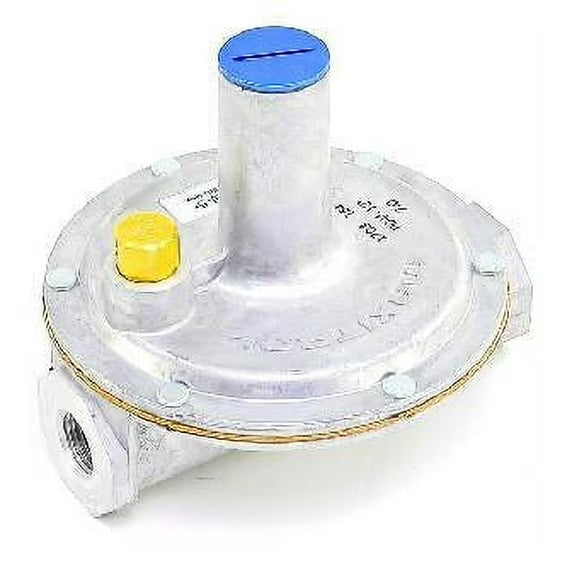

Maxitrol 325-5L-1/2 1/2" Gas Pressure Regulator ( For Up To 325,000 BTU)

🔥 Maxitrol 325-5L-1/2 Gas Pressure Regulator is a lever acting pounds to inches regulator designed for residential, commercial, and industrial gas applications. It provides precise control from full flow to pilot flow and features positive dead-end lockup for reliable performance.

Key Features

• 1/2 inch NPT ports
• Maximum inlet pressure of 2 PSI
• Outlet pressure range of 7 to 11 inches water column
• Ambient temperature range of -40 to 205°F
• Compatible with natural gas, manufactured gas, mixed gases, liquefied petroleum gases, LP gas-air mixtures, and DIN EN 437 gas family 1, 2, and 3 gases
• High leverage valve linkage assembly for positive dead-end lockup
• Suitable for full flow and pilot flow control

Installation Notes

For outdoor installation, use vent protection. Recommended vent protector part number: 13A31-50 3/8 inch NPT Connection Vent Protector for 325-5 and 325-5L.

Typical Applications

• Residential gas equipment
• Commercial gas systems
• Industrial gas applications
• LP and natural gas regulator setups

📦 SKU: 325-5L-1/2

Always follow the equipment manufacturer instructions and local gas code requirements for sizing, installation, and service. This regulator should be installed by a qualified professional.
